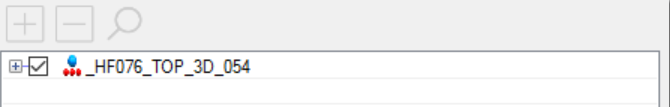

To expand the Assembly Navigator press the button

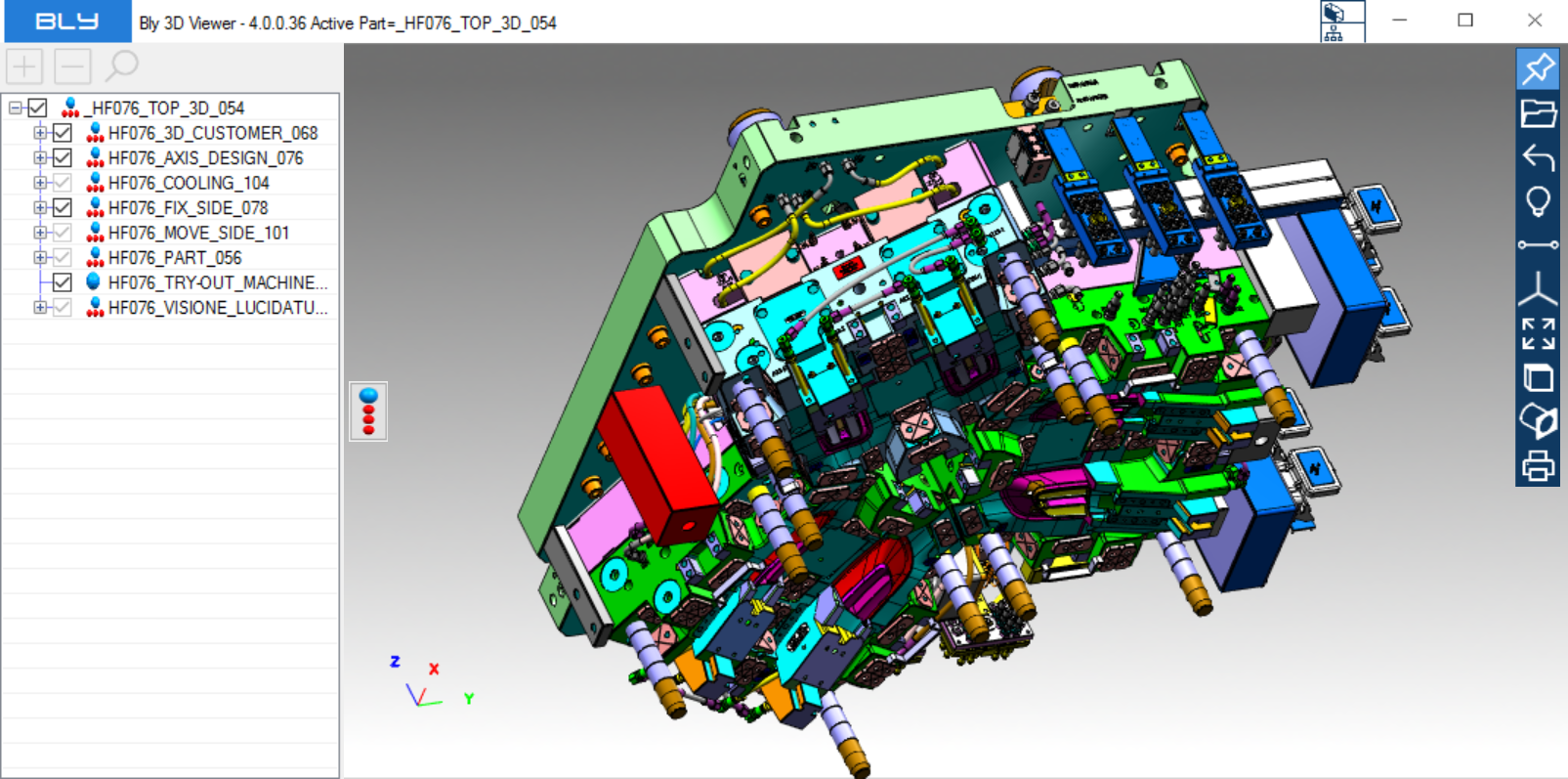

It is possible to hide or display parts by unchecking and checking the boxes near the part name

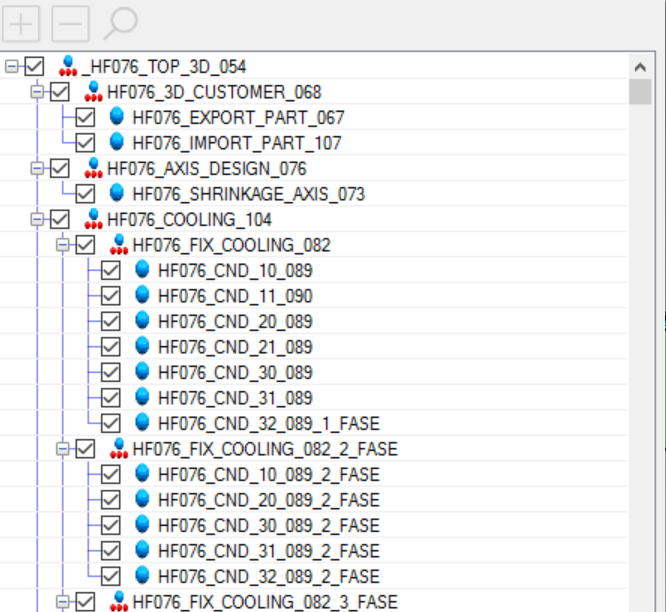

Pressing the  symbol, the tree expands the structure view, showing the children. As opposite, the  symbol compacts the structure view, hiding the levels below


Assembly Navigator Toolbar


Assembly toolbar includes the following commands:


Expand all

Expands all nodes to all subsequent levels, showing the full assembly structure


Collapse all

Collapse all nodes, showing the top level only

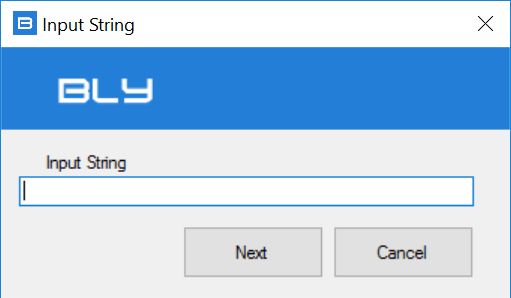

Find Component

Collapse all nodes, showing the top level only
