Show all

Shows all the objects loaded (do not open closed components), including hidden geometry.


Invert Show

Inverts the display situation, hiding visible objects and showing hidden ones.


Hide Curves

Hides curves in the model.

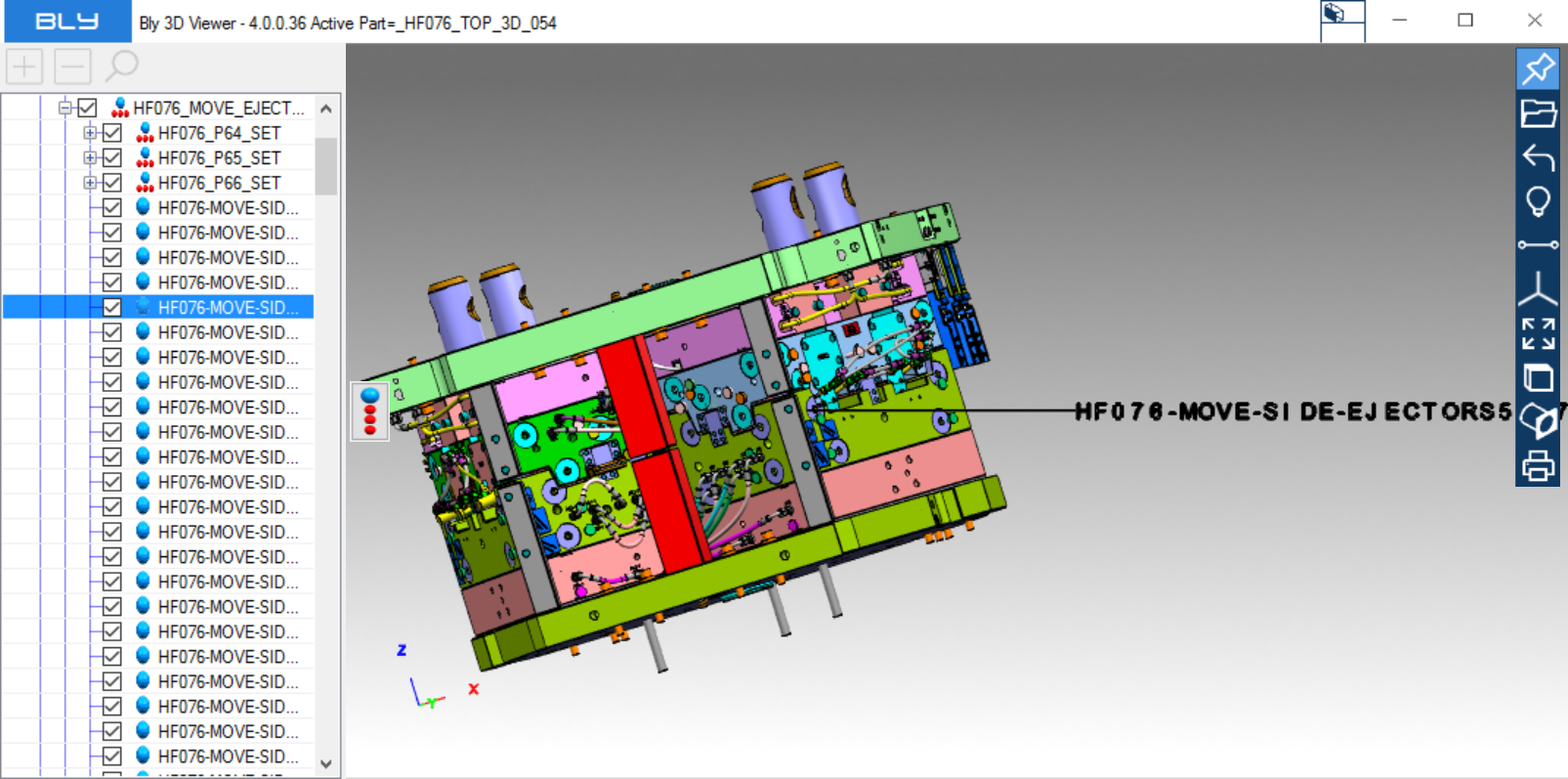

Show Component Name on Screen

Shows the name of a selected component in the graphic area.



Advanced Selection

This command opens a dedicated window to help you filter the object selection based on two criteria: colors and layers. More details can be found here


Show/hide Edges

Hides or shows the edges. It has a significant impact on the visualisation effect and performance.

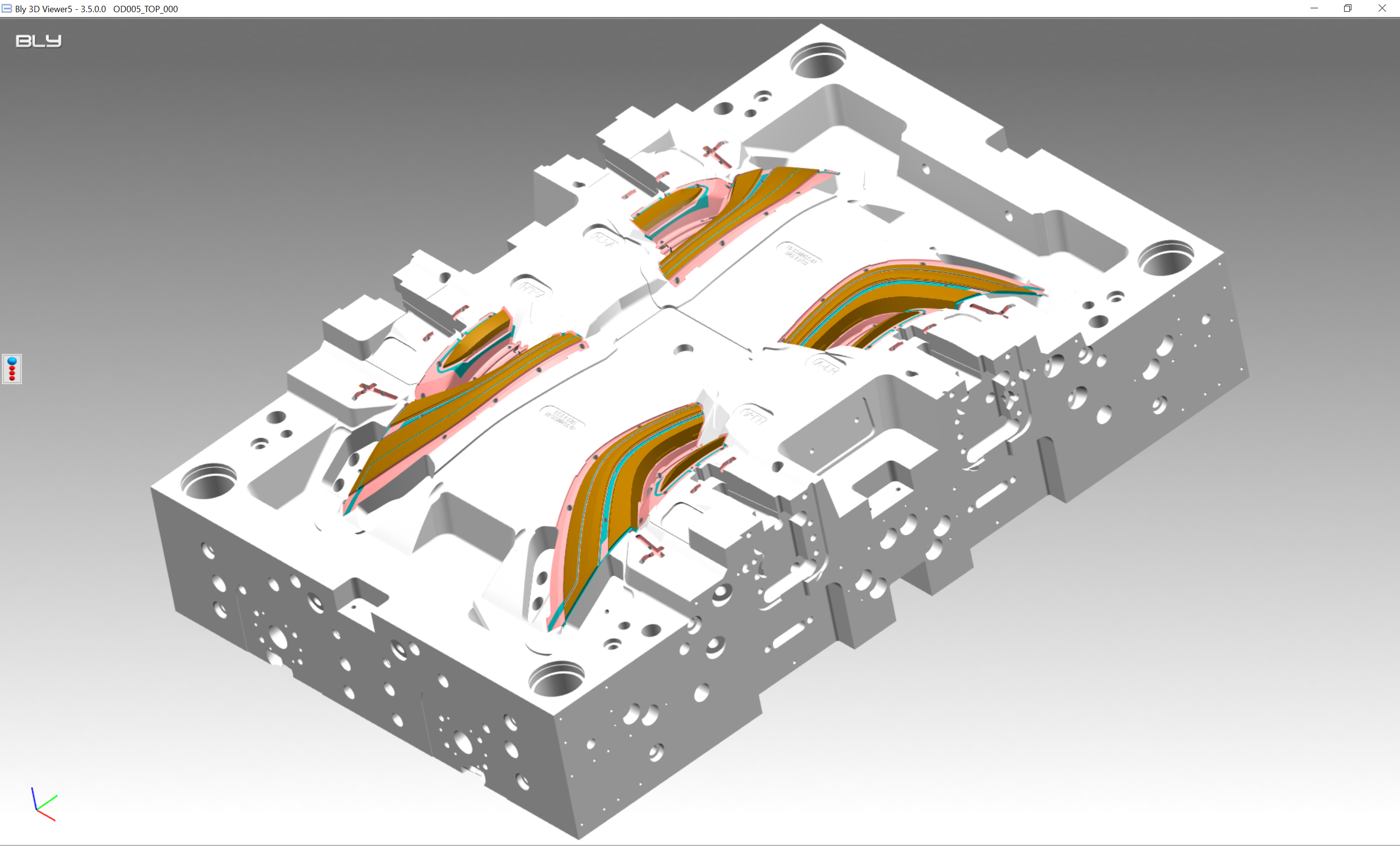

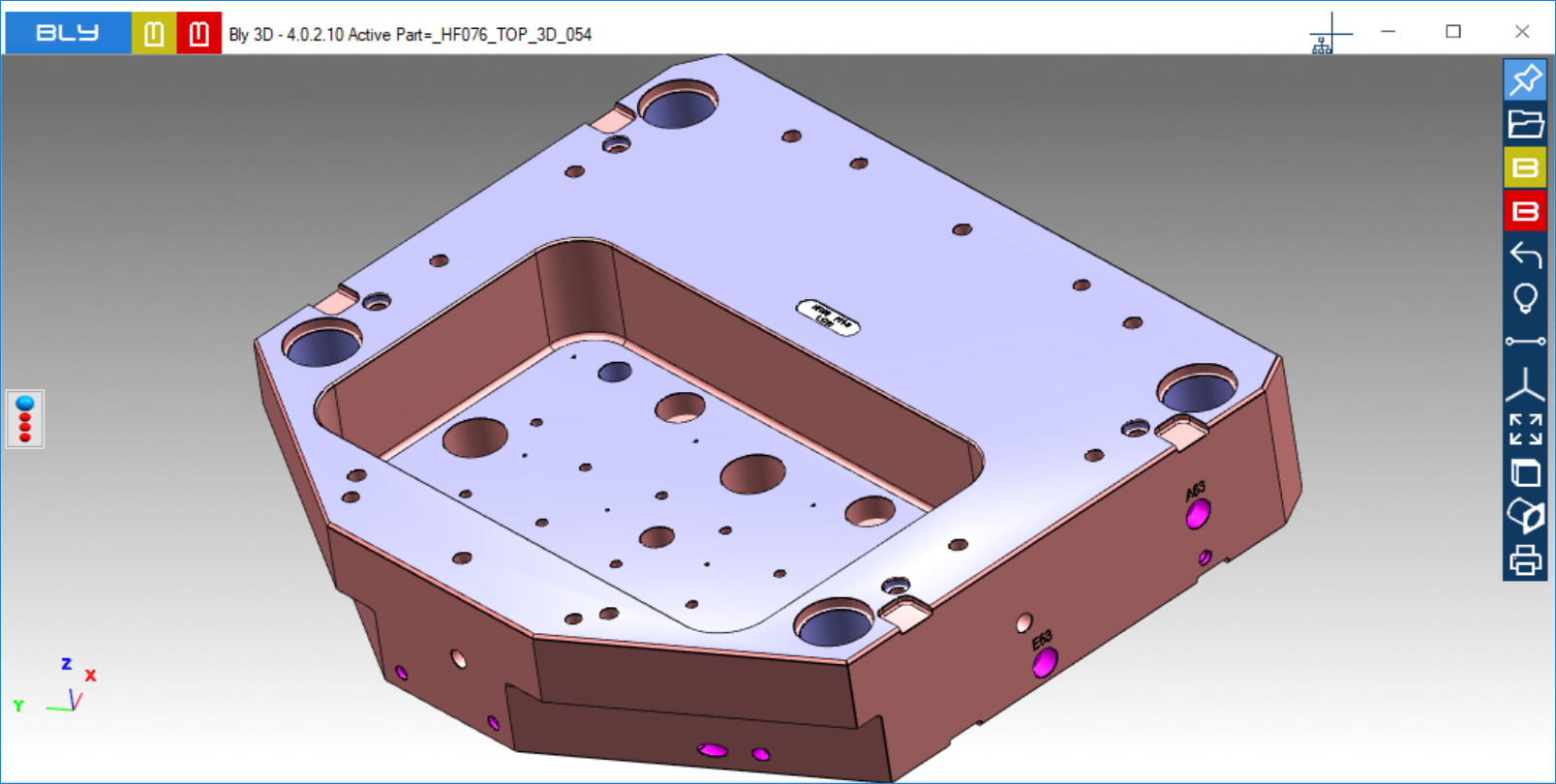

Show edges:

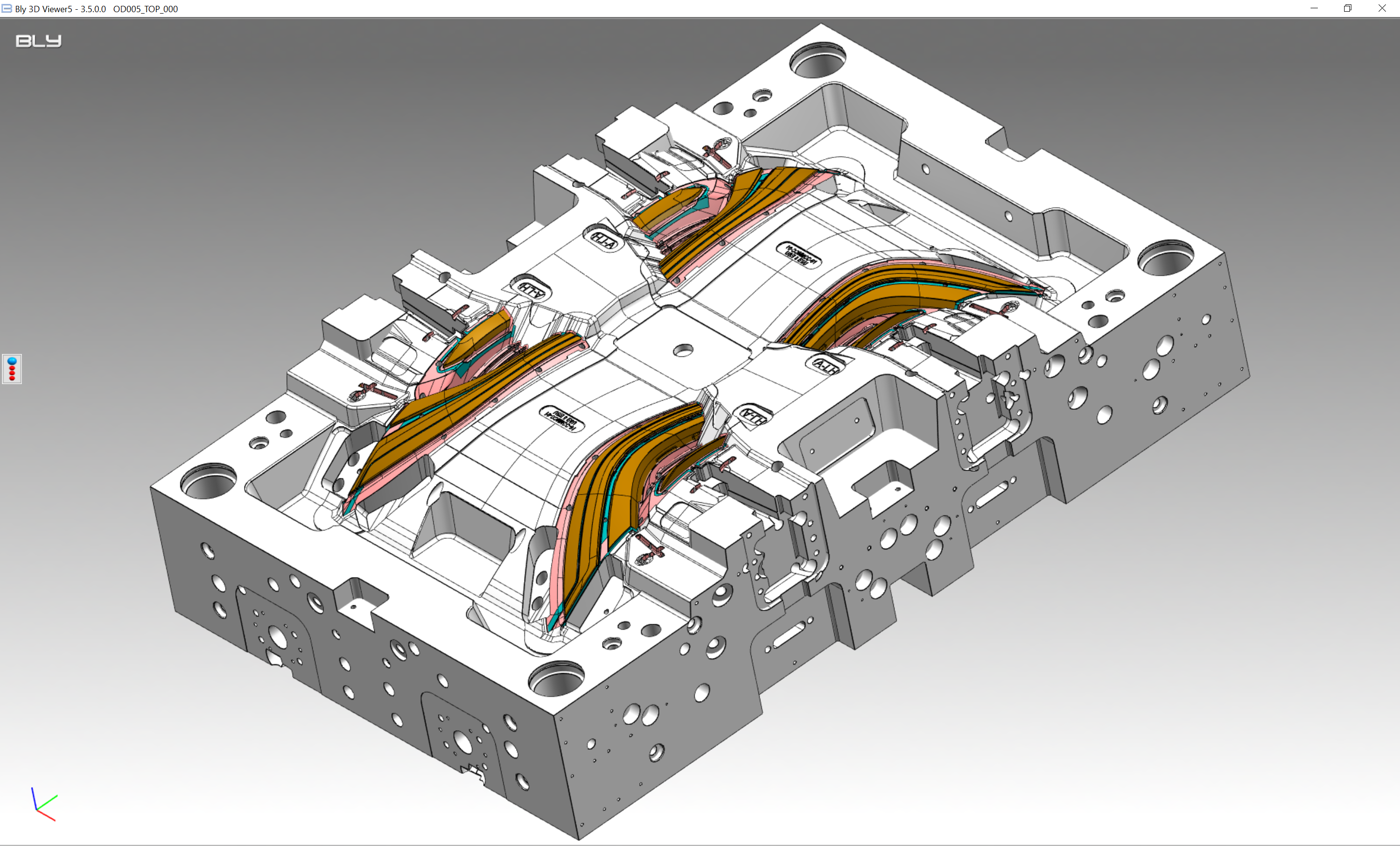

Hide edges:


Isolate Components

If the model open is an assembly, this feature sets the selected component as the only one visible, hiding the others.

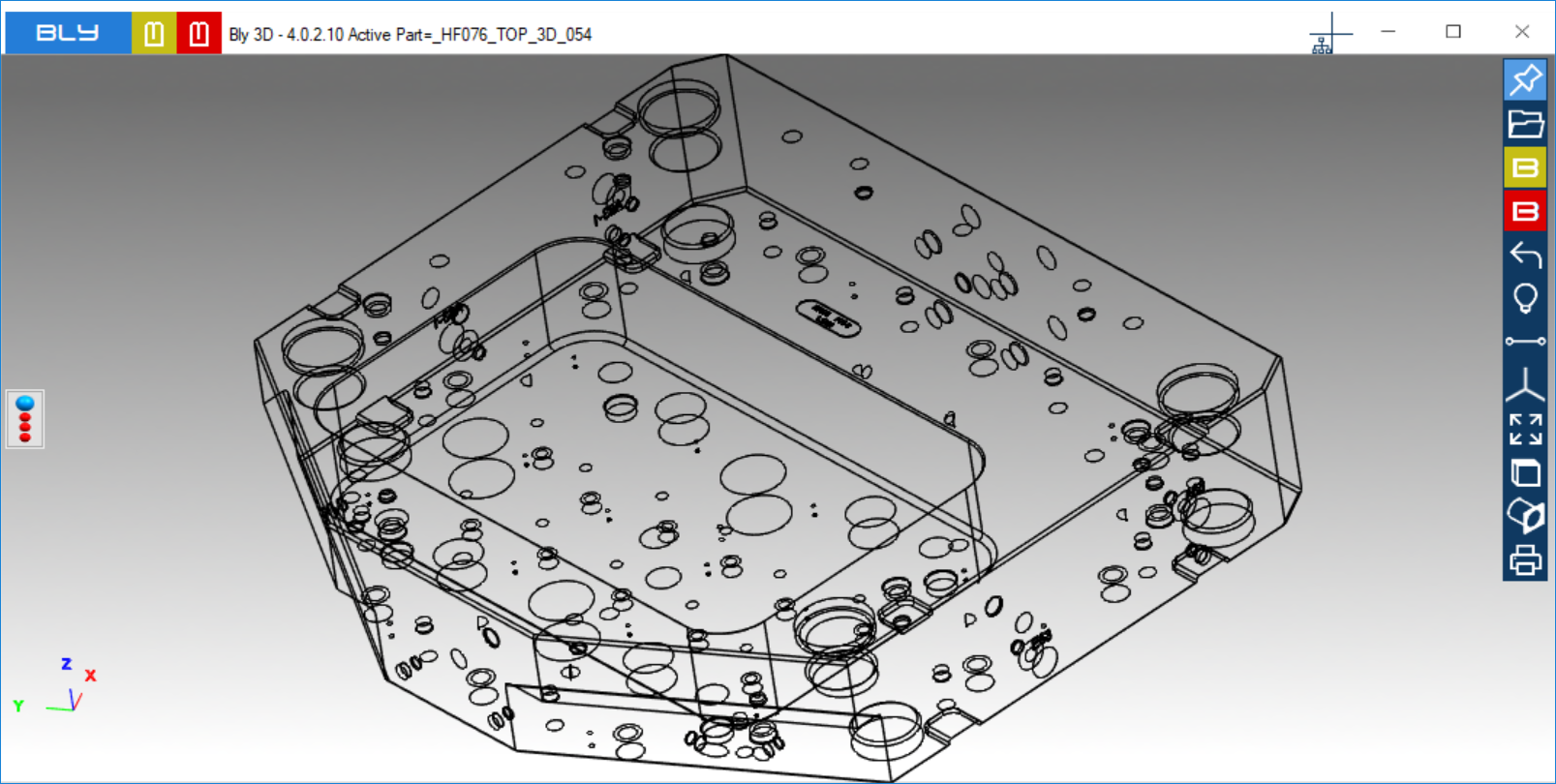

Wireframe display

It converts model's visualisation into wireframe
