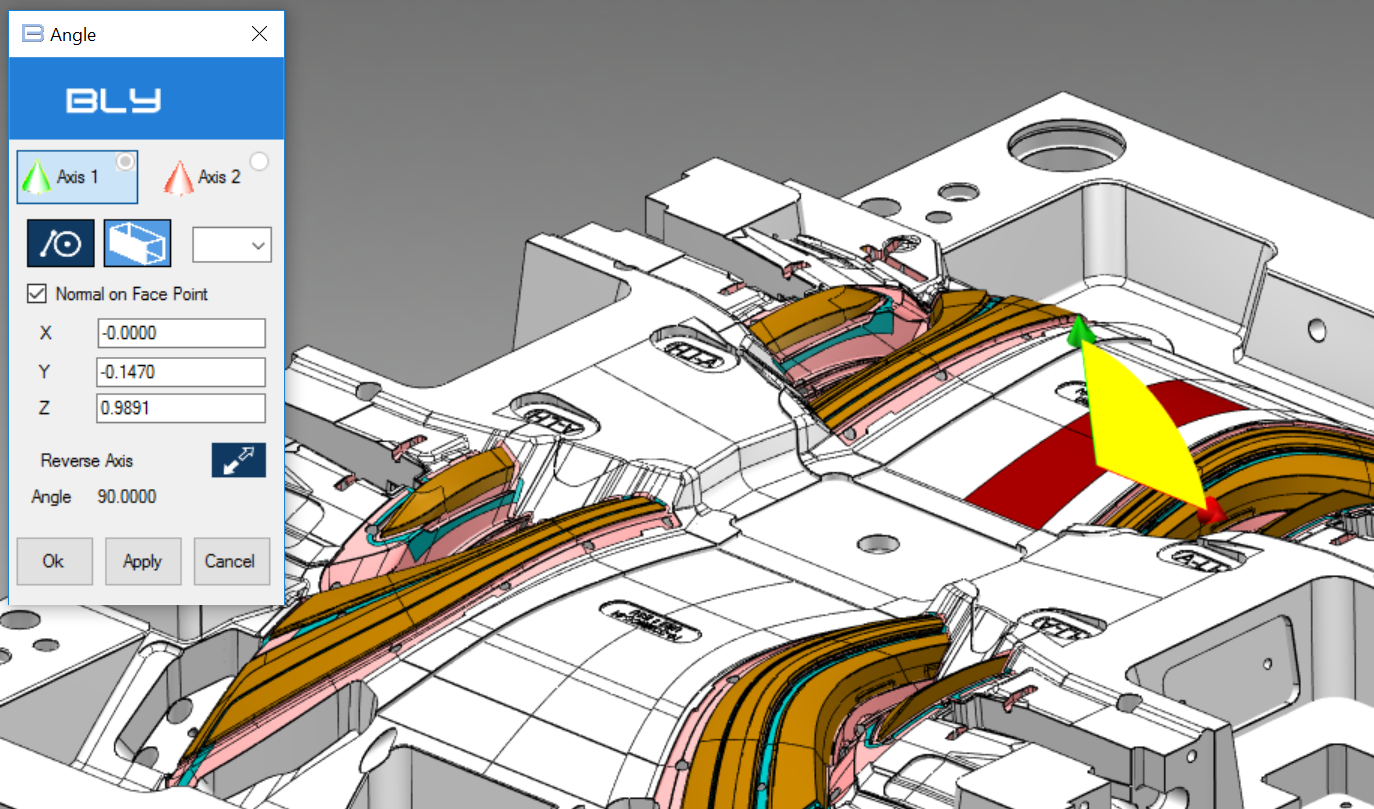

The command measures the angle between 2 axis. Axis can be defined using straight edges or vector associated to point onto faces or surfaces. Pressing the button will show the Angle window:

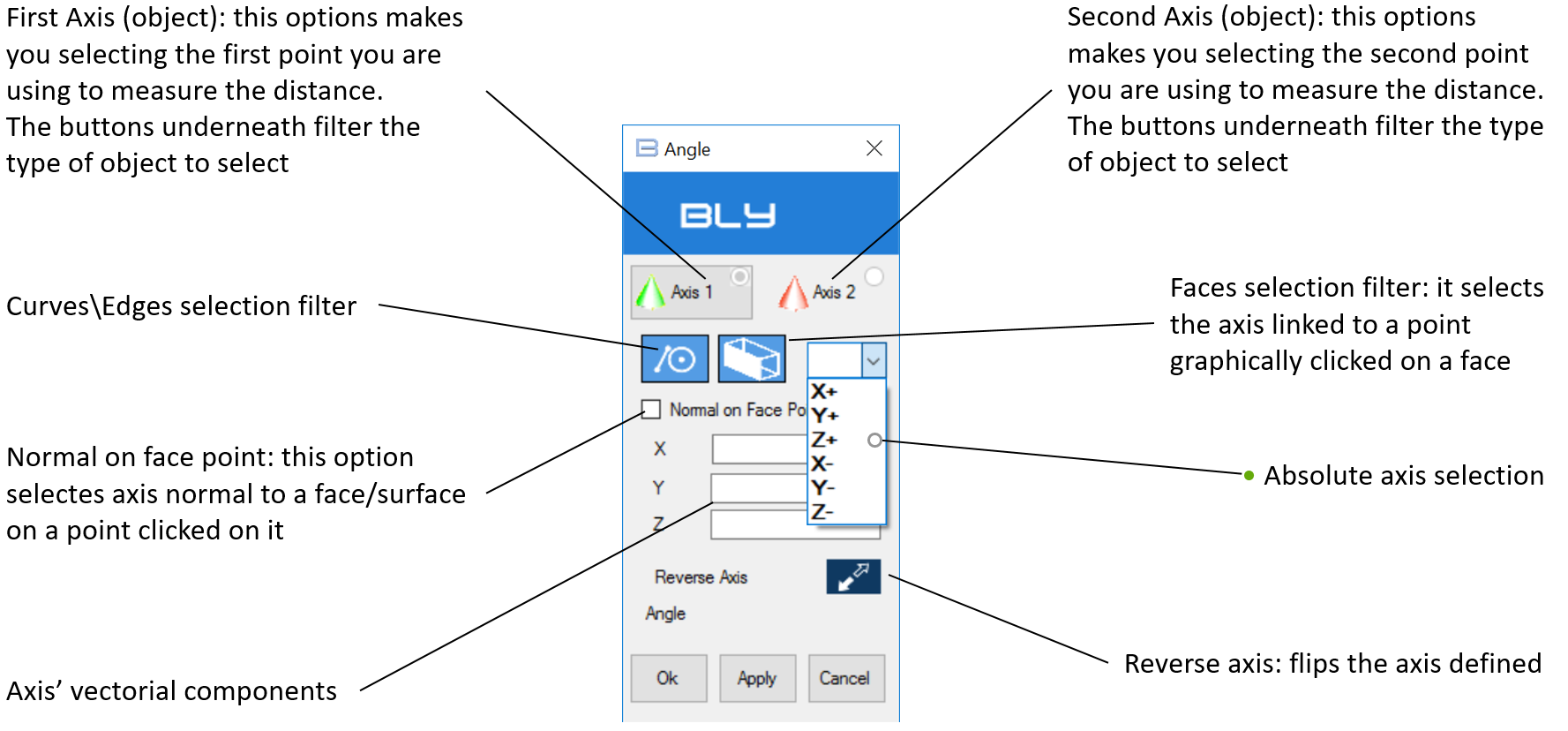

By default Bly asks you to select the Axis 1 (greeen arrow) first, but you can decide freely which object to select by pressing the objects' buttons.
