CSYS and display toggles

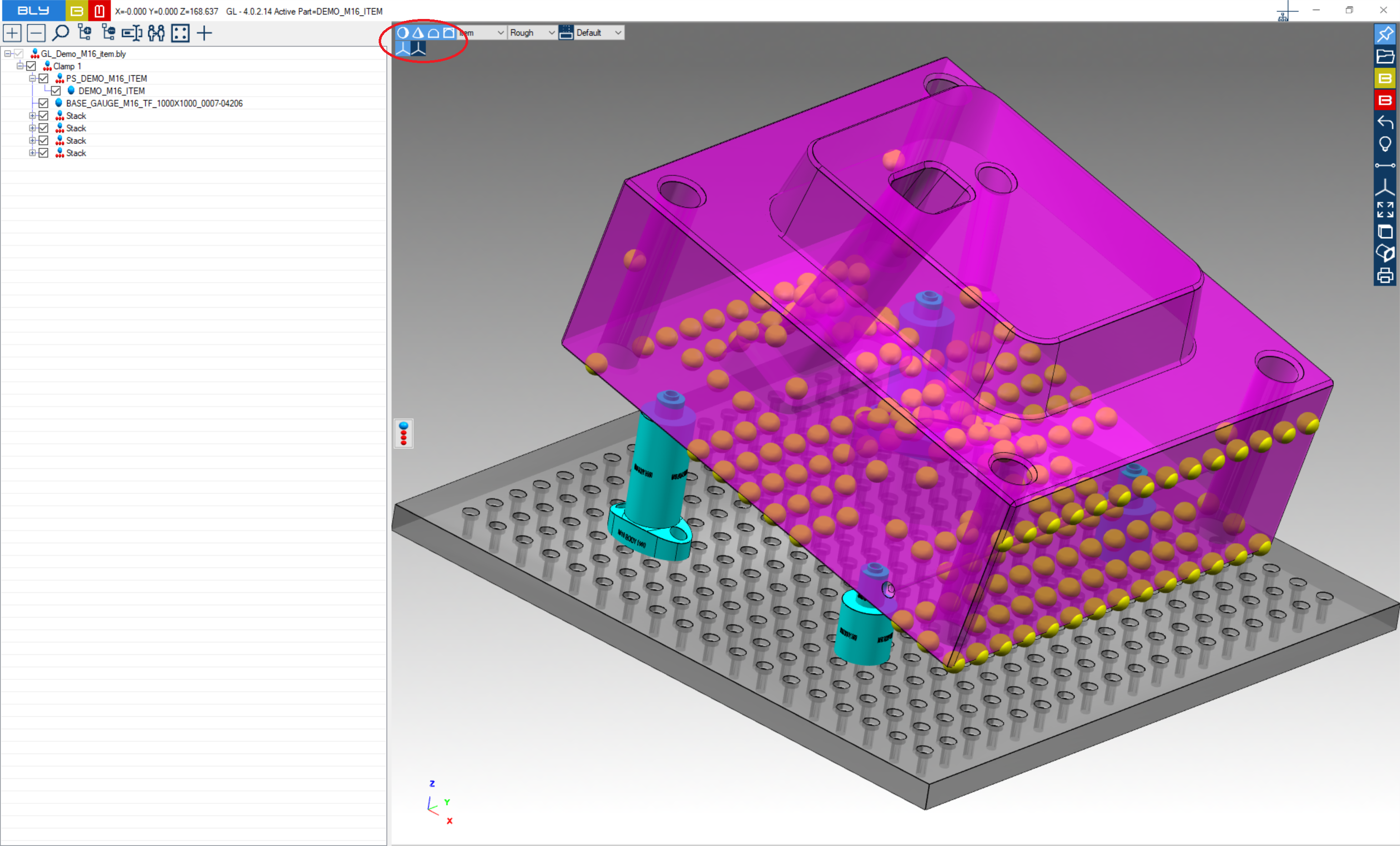

To better manage clamp environment and elements positioning, there are a few commands place in the upper side of the graphic window

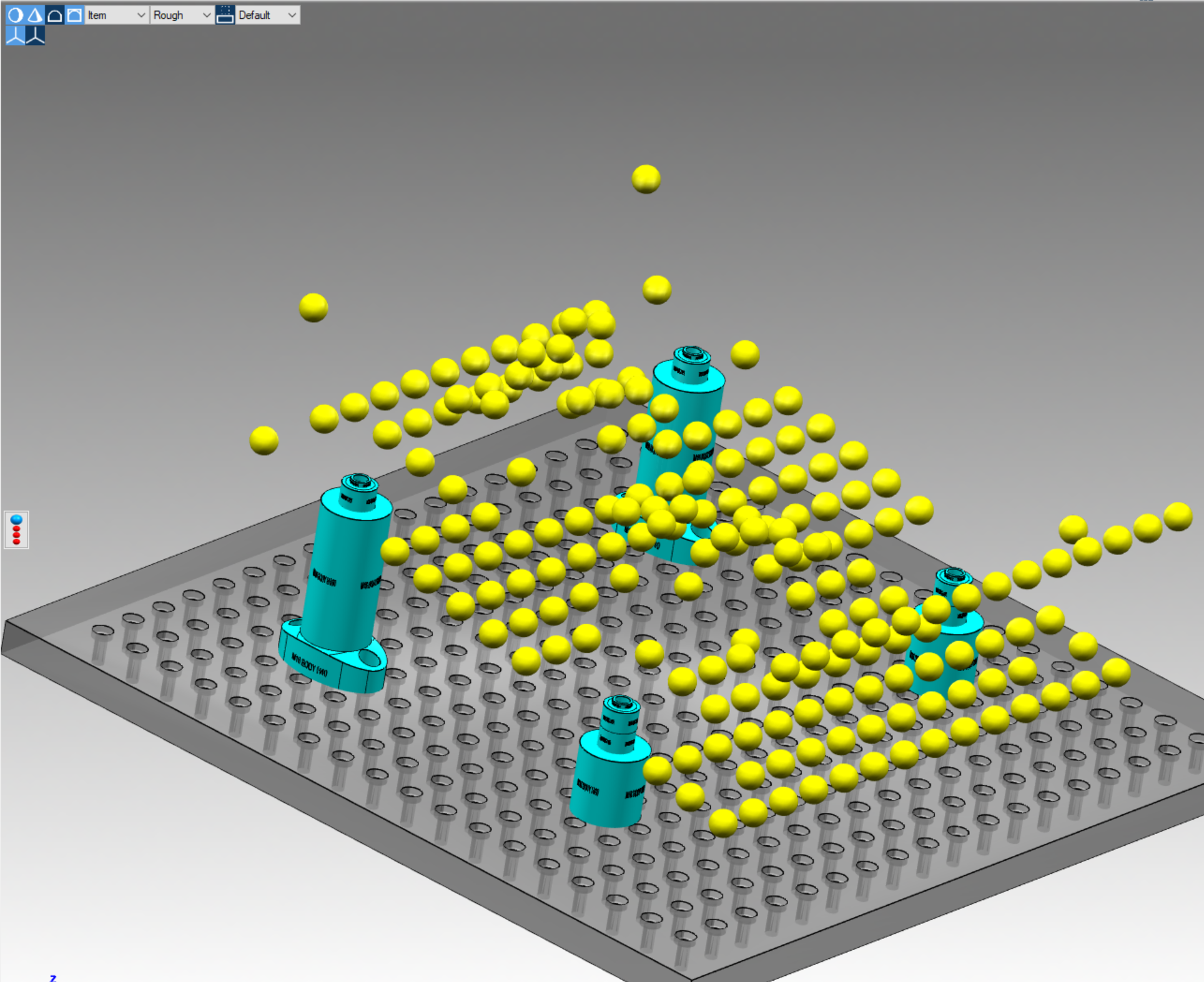

Activate/Deactivate spheres
It turns on/off the positioning spheres. When off, machine phase's cones are displaied if present

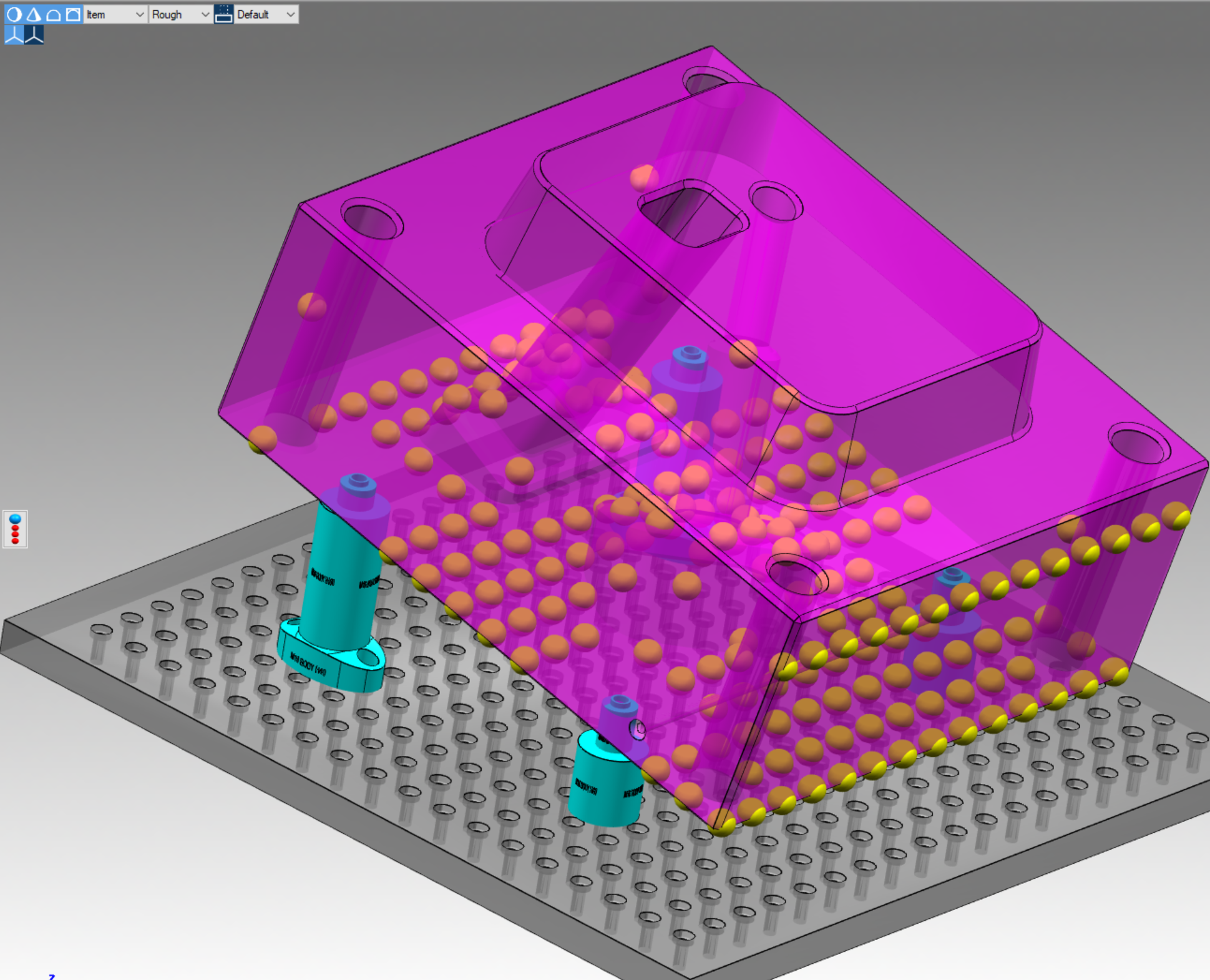

Activate/Deactivate cones
It turns on/off the machine phase's cones.

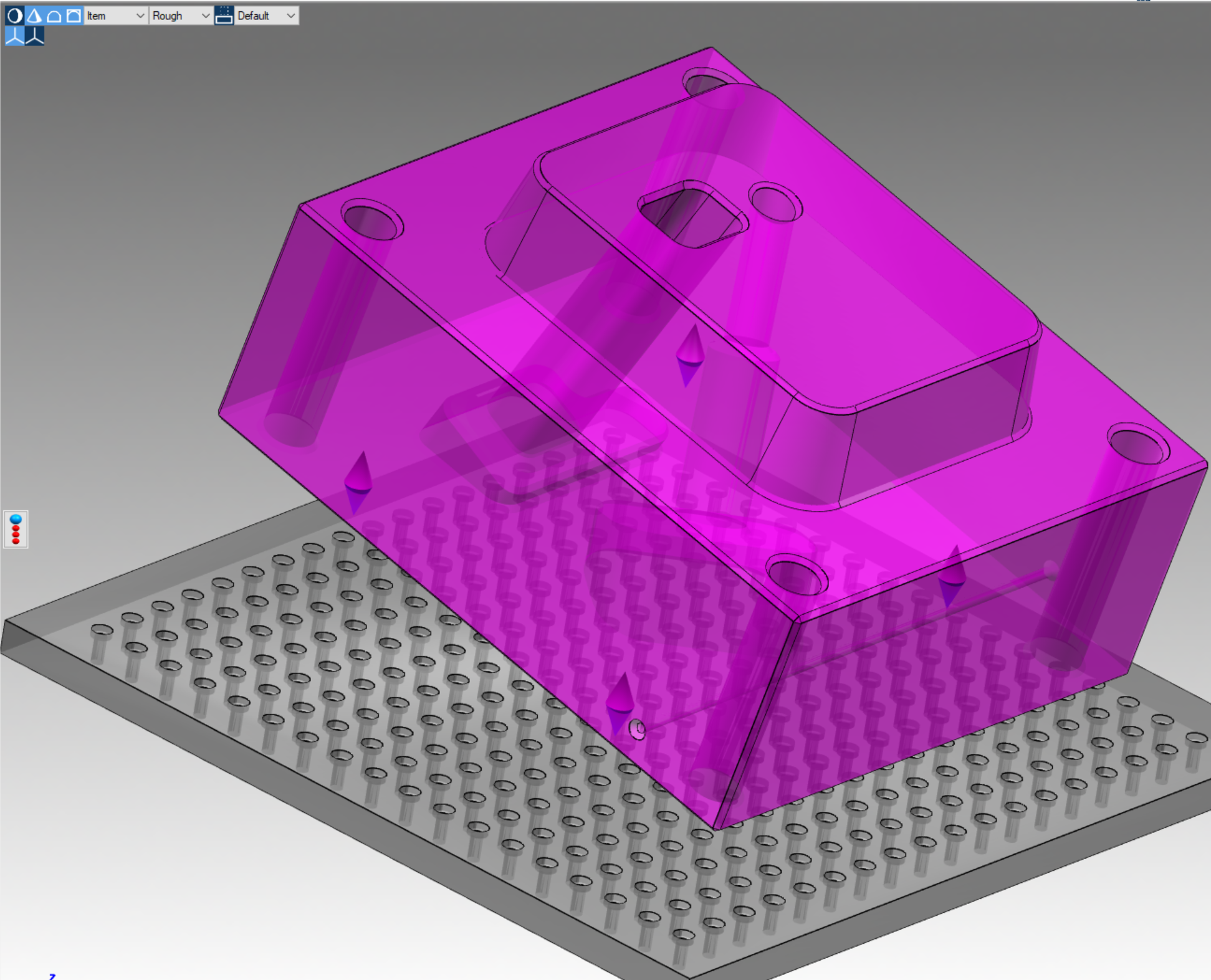

Show/Hide piece
It blanks/unblanks the workpiece. Please, note that this is a visualisation function olny, Guideline's calculations and clamping functionalities are maintained.

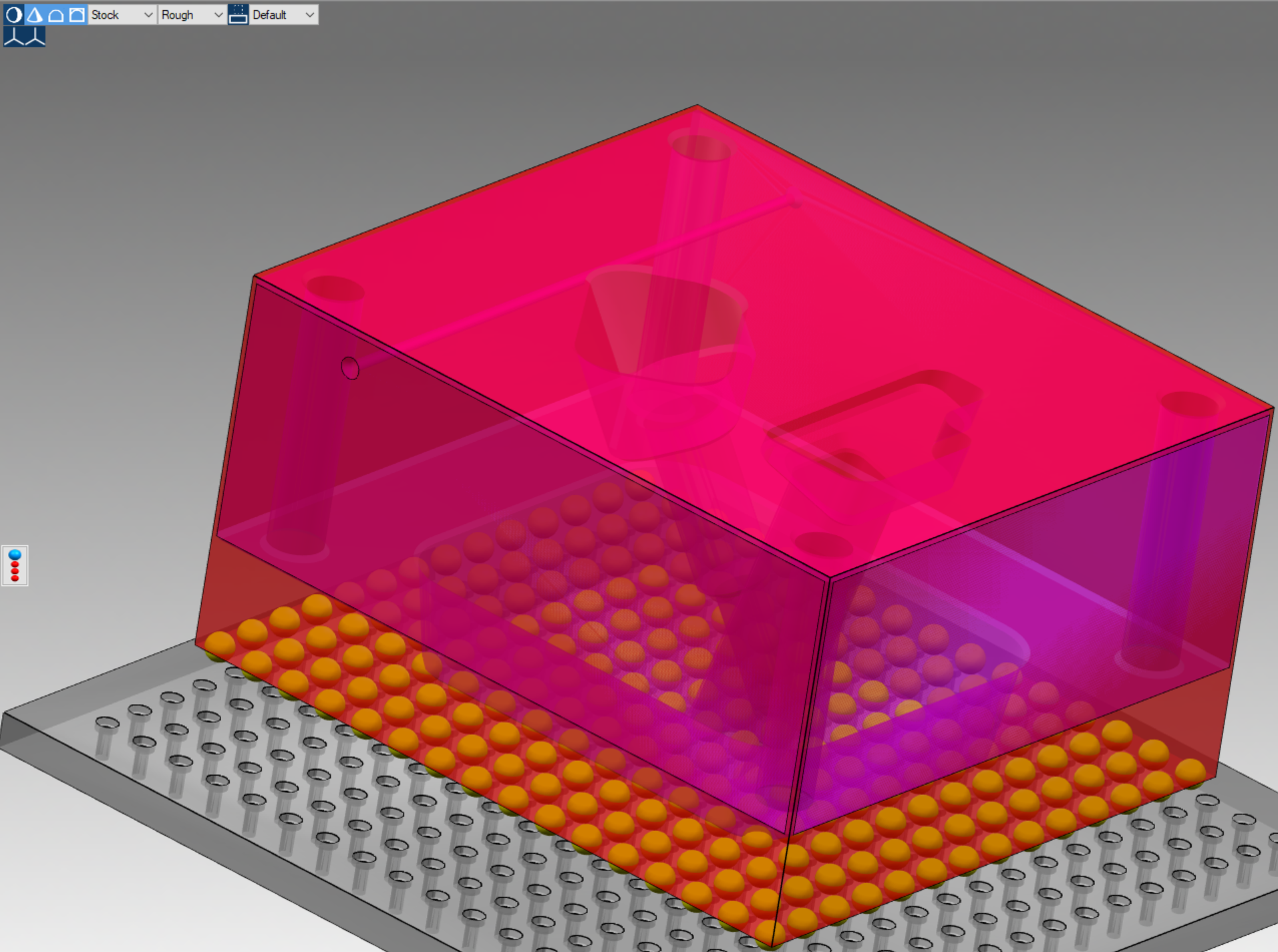

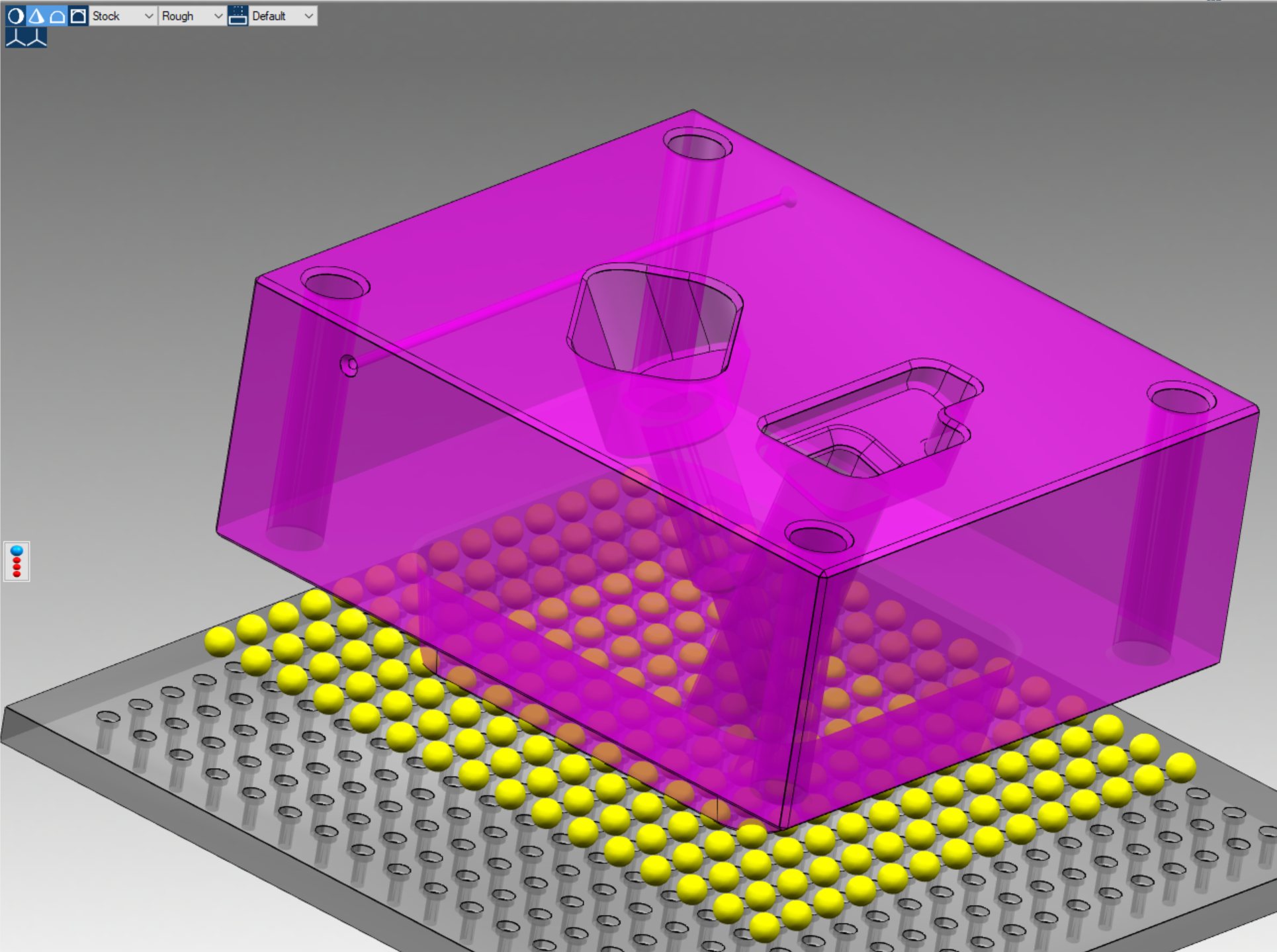

Show/Hide Stock
It blanks/unblanks the raw block, if present. Please, note that this is a visualisation function olny, Guideline's calculations and clamping functionalities are maintained.

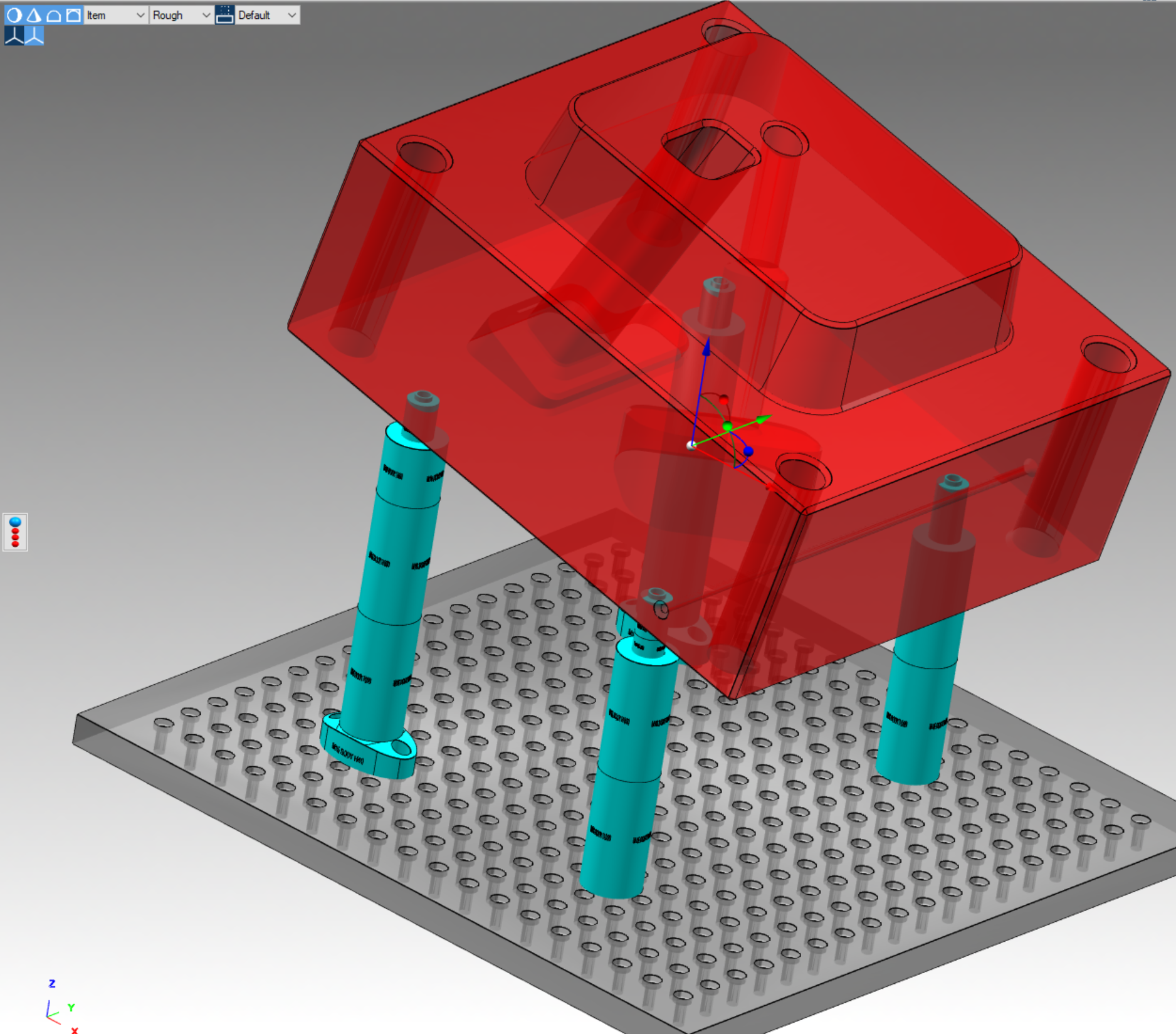

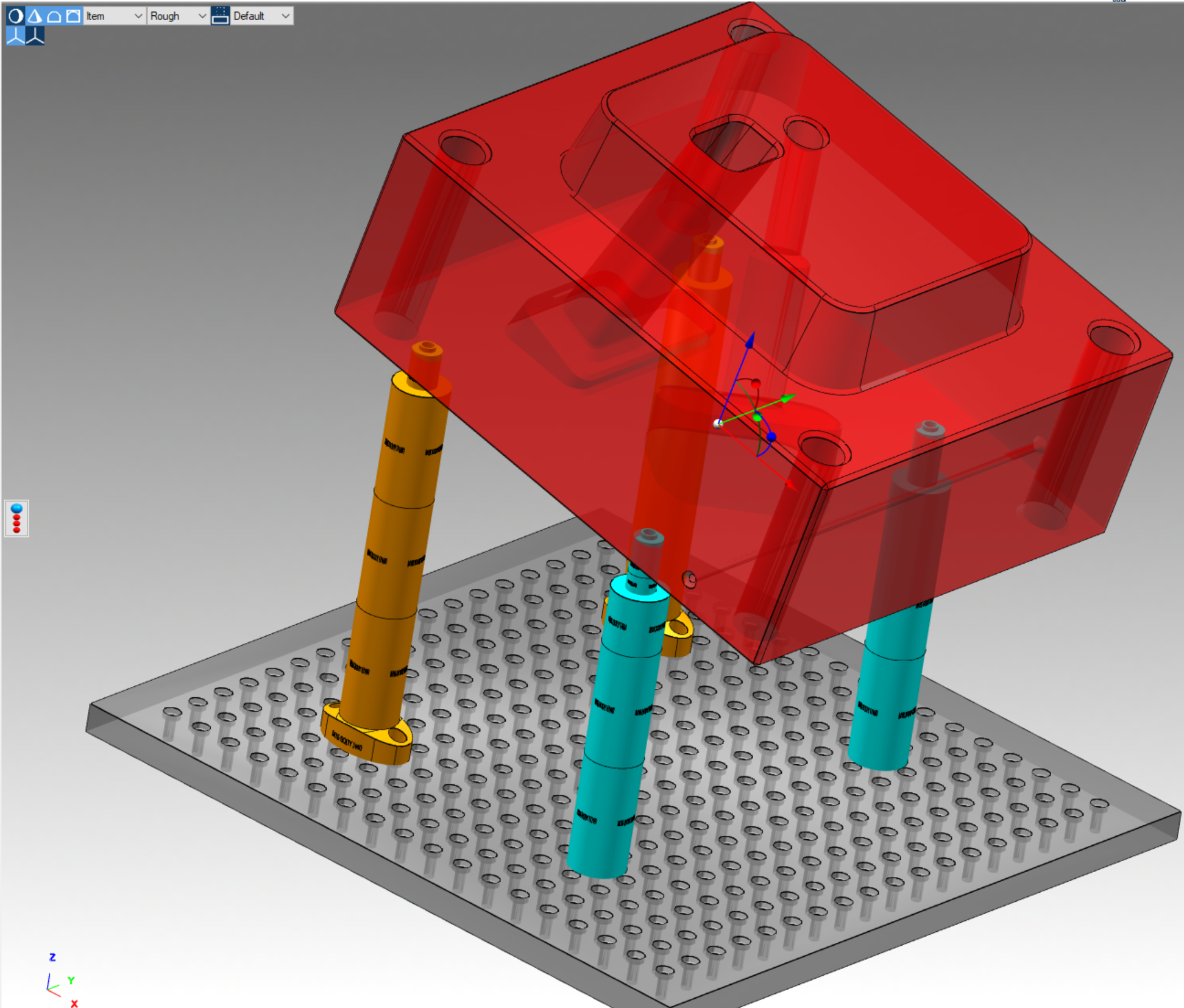

Original CSYS
It orients the manipulator along the original workpiece's CSYS (design CSYS). Workpiece drags along design axis.

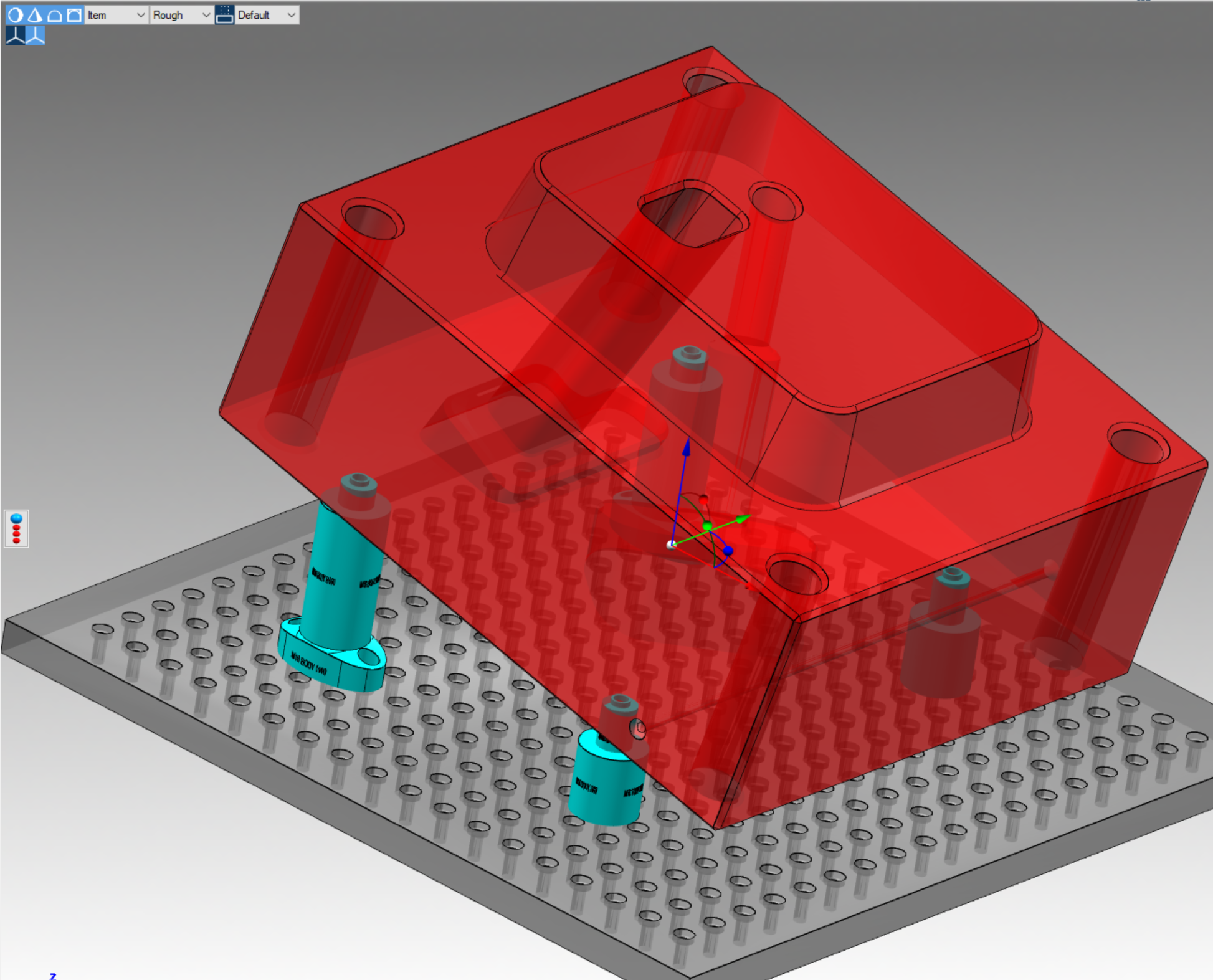

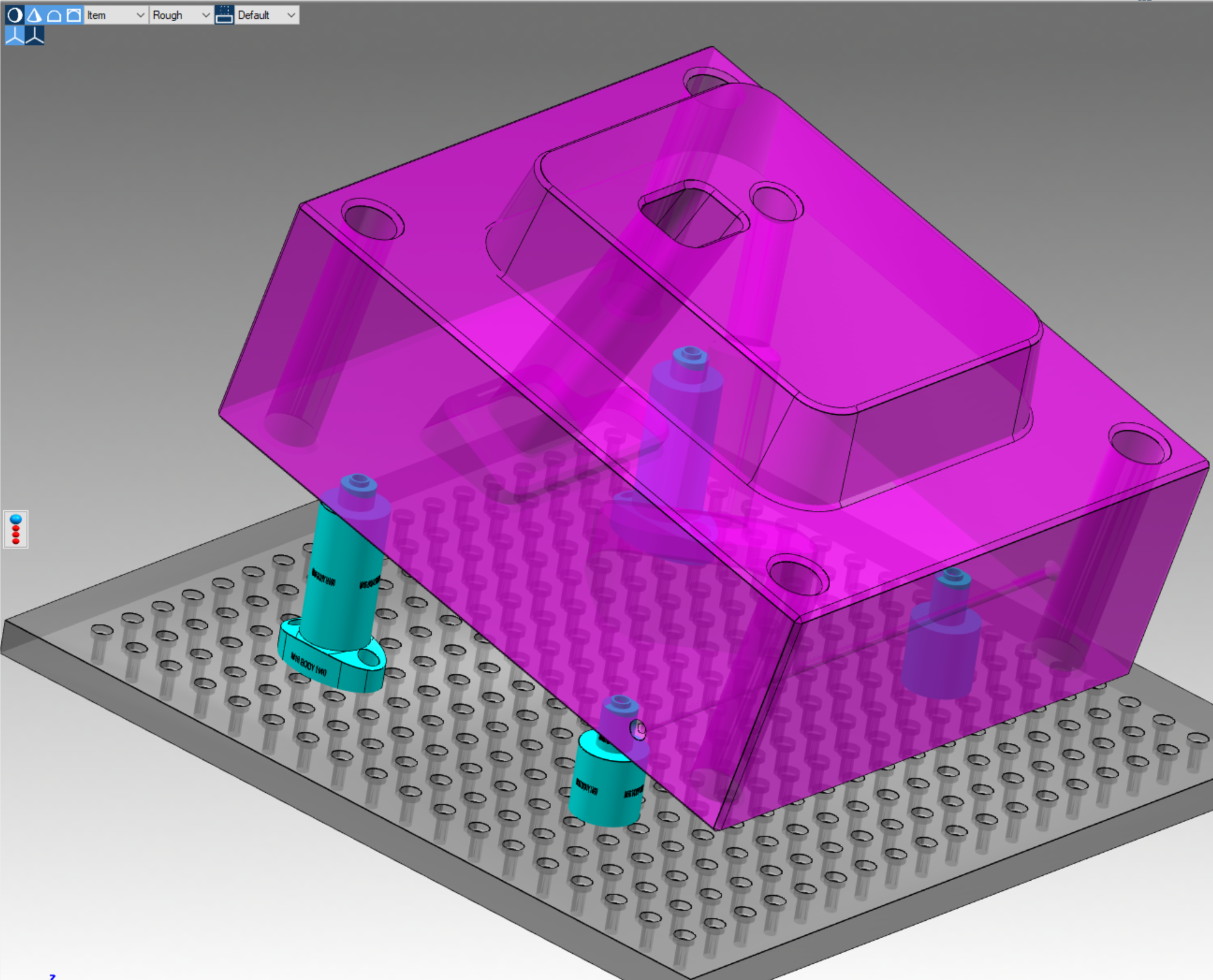

Absolute CSYS
It orients the manipulator along absolut clamping CSYS. Workpiece drags along absolute axis.
