Clamps documentation and operator's instructions can be generated in PDF from any clamp created in Guideline 4.0.

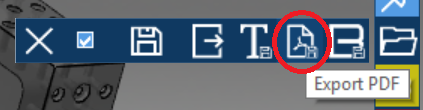

To access the function, activate the clamp you want generate the documentation and press "Export PDF" from the main toolbar.

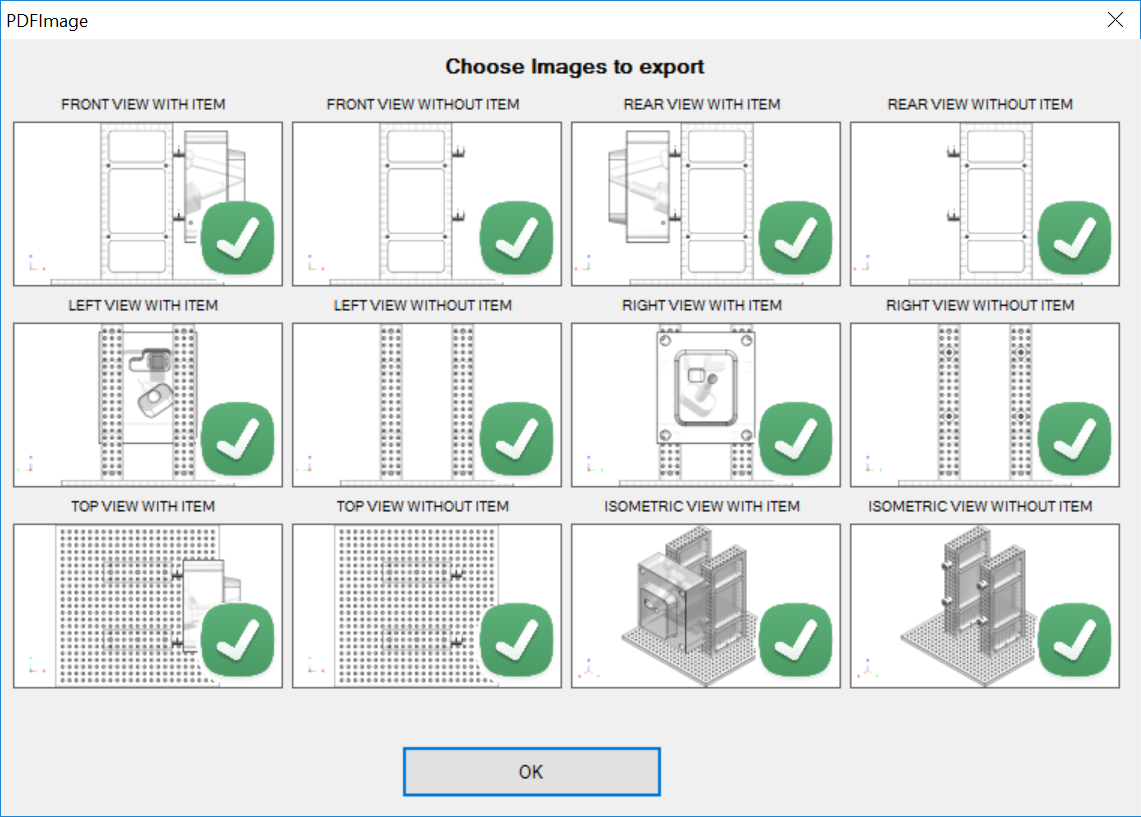

After having specified the output file, Guideline generates the images of the clamp and then opens the window displayed aside: user can deselect the images to include in the document and then press OK to generate the PDF.


PDF opens right after generation and shows in the first pages the images selected.

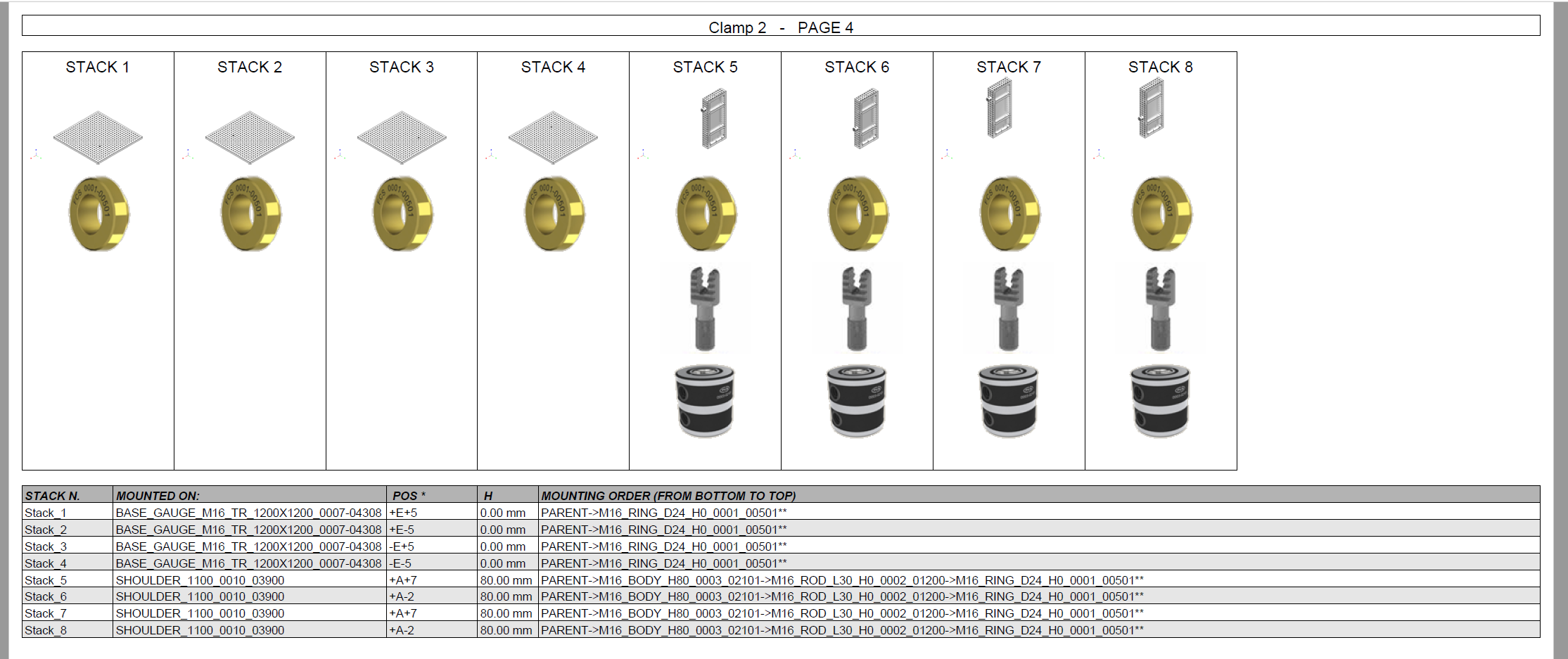

After, exploded views of the stacks and a Bill Of Material (BOM) table are inserted in the document.


The table reports the position of each stack on the base gauge: there are 2 options available, Battleship or Distance (mm).

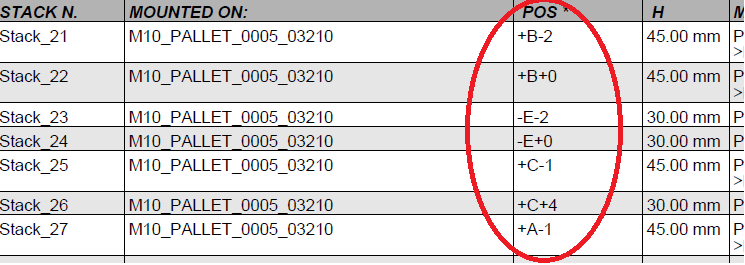

Battleship identifies hole with number and letters:

Labels are deinied as follow:

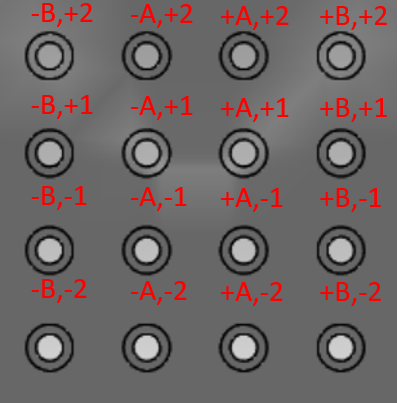

Base Gauges type «TR» (with a hole in the center)

  • Central hole is marked «A,0»;
  • Lines are named with numbers, + for the upper side, - for the lower side, growing outward;
  • Columns are named with letters, + for the right side, - for the left side, growing outward.

Base Gauges type «TF» (with no hole in the center)

  • Lines are named  with numbers, + for the upper side, - for the lower side, growing from the most internal outward;
  • Columns are named with letters, + for the right side, - for the left side, growing from the most internal outward.

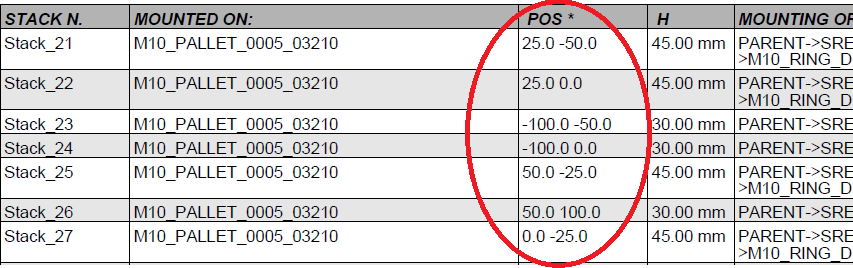

Distance identifies holes by their distance from the table's center. Units are millimiters (mm)

Component alias

By default, PDF's BOM lists FCS component with FCS standard description and catalogue code. This results sometimes in a very long string, which can be inconvenient to read on the workshop. In addition, companies may have internal coding for FCS components, matching wharehouse logic and ERP software.

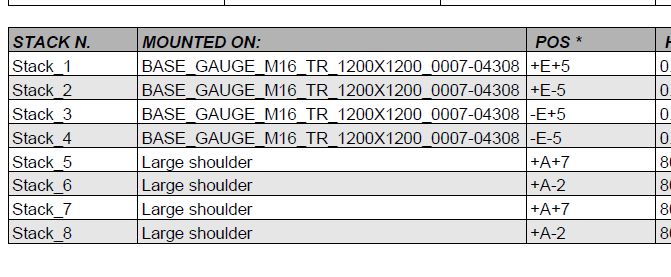

To facilitate the recognition of the elements and their management, it is possible to specify alternative codes (alias) to be displayed in the clamp PDF, making the reading easier.

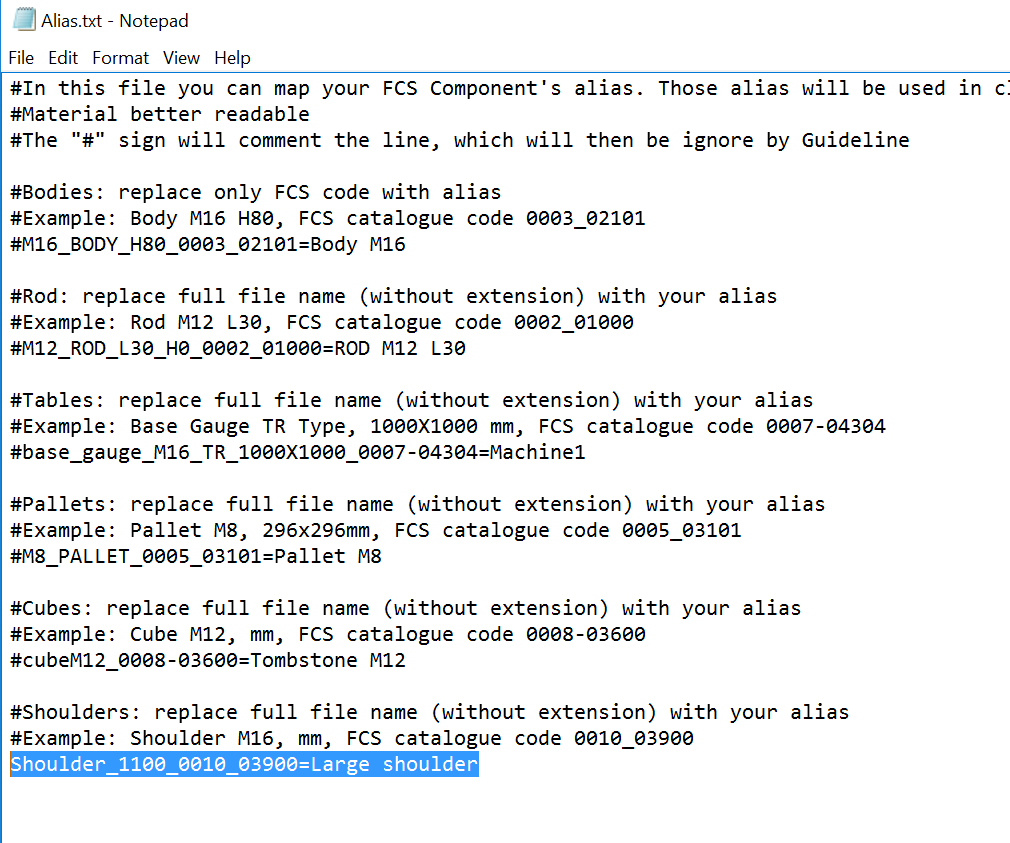

Alias are specified in "\GuideLine V4\Misc\Alias.txt" file: in the file there are examples how to specify alias for each type of component (see the line highlighted in the picture aside, specifying an alias for a shoulder).

Restart Guideline 4.0 to apply the changes.
