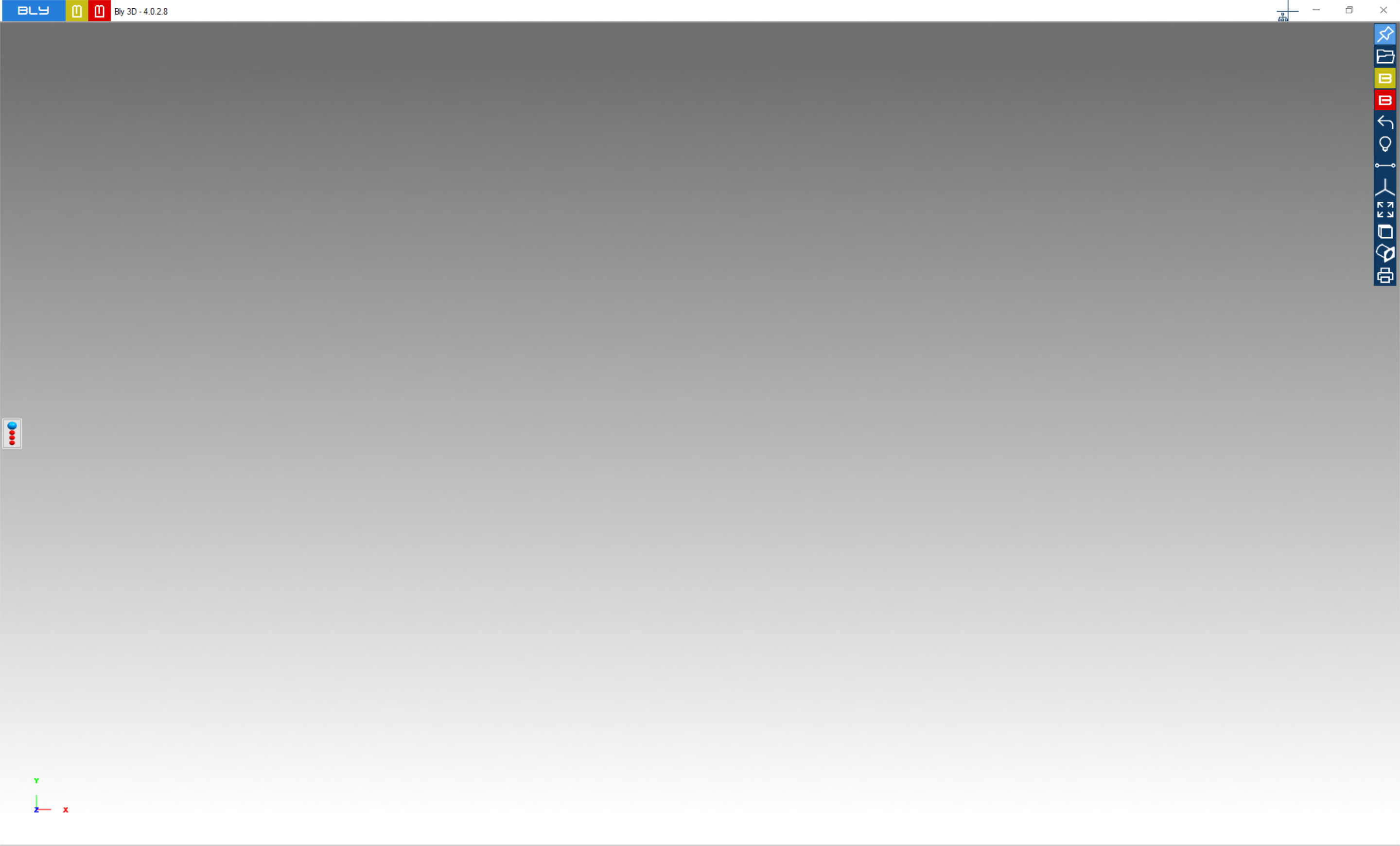

Once Guideline is active, the screen changes as below, adding some command on the graphical area:

No open model

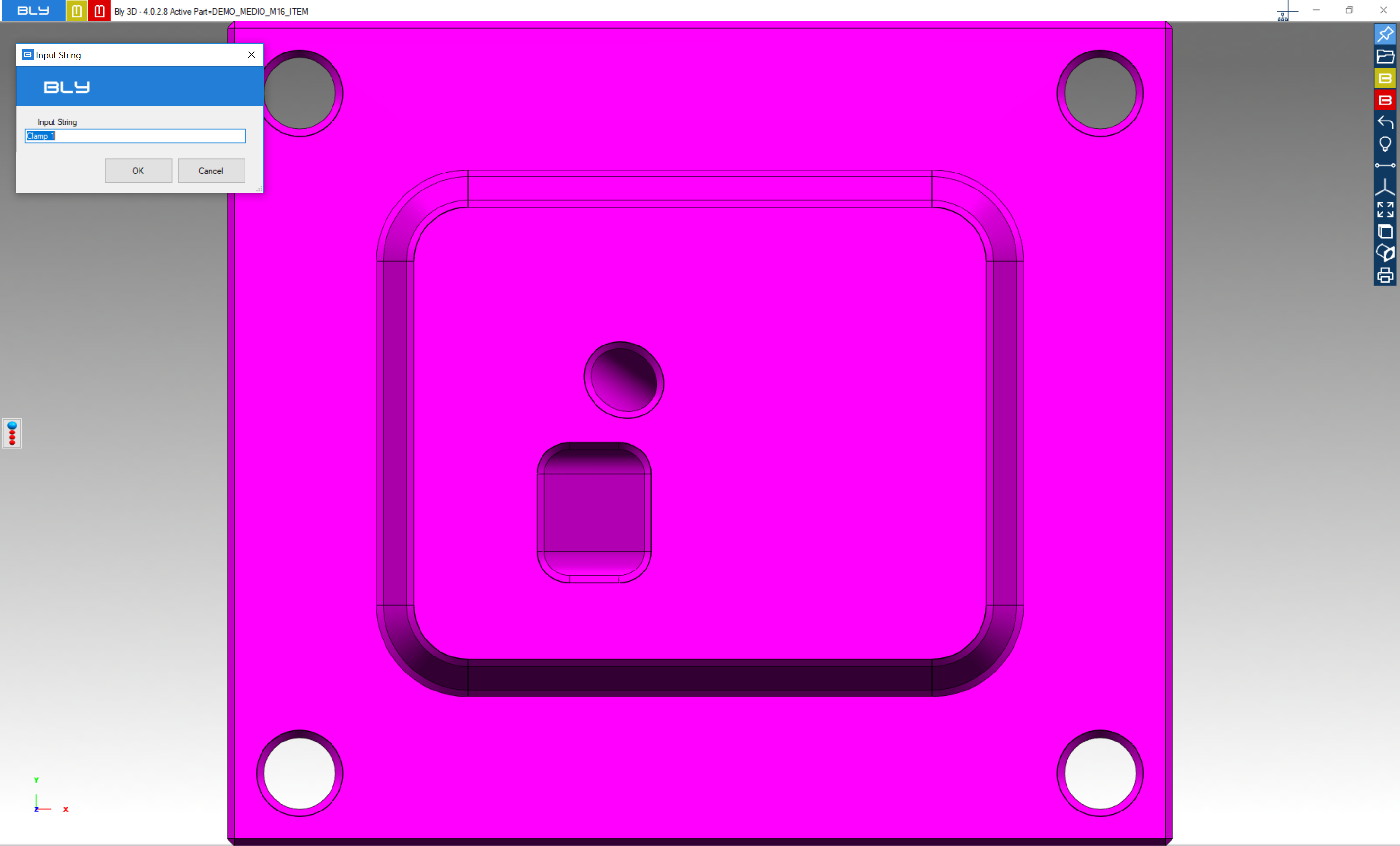

With a 3D model open, press the yellow "B" icon and Guideline asks to name the first clamping environment immediately after the activation:

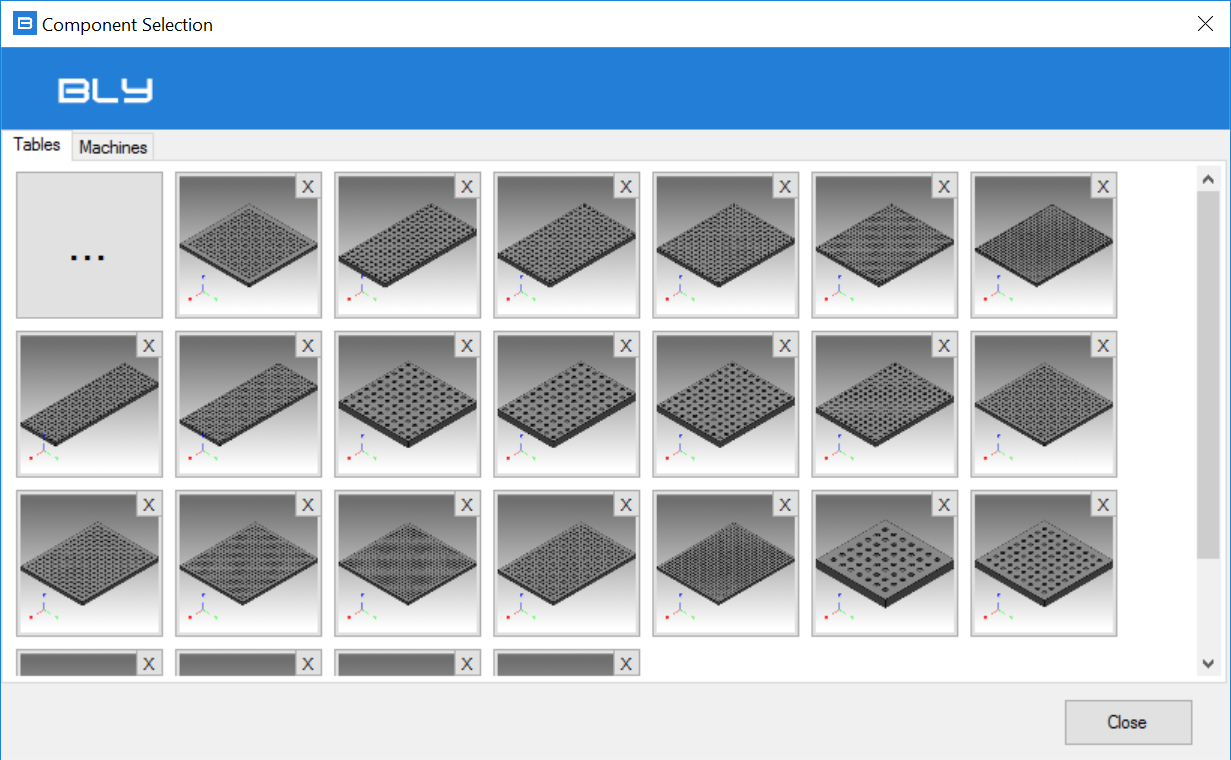

Subsequently, the base gauge library is displayed and a table can be choosen:

Pressing "Close" will stop the clamping environment creation: Guideline can be then deactivated via the golden icon in the upper left corner and re-activated eventually.

While adding the base gauge, it's possibile to modify the library with additional tables and/or remove the ones present already by clicking (see chap. customise library)

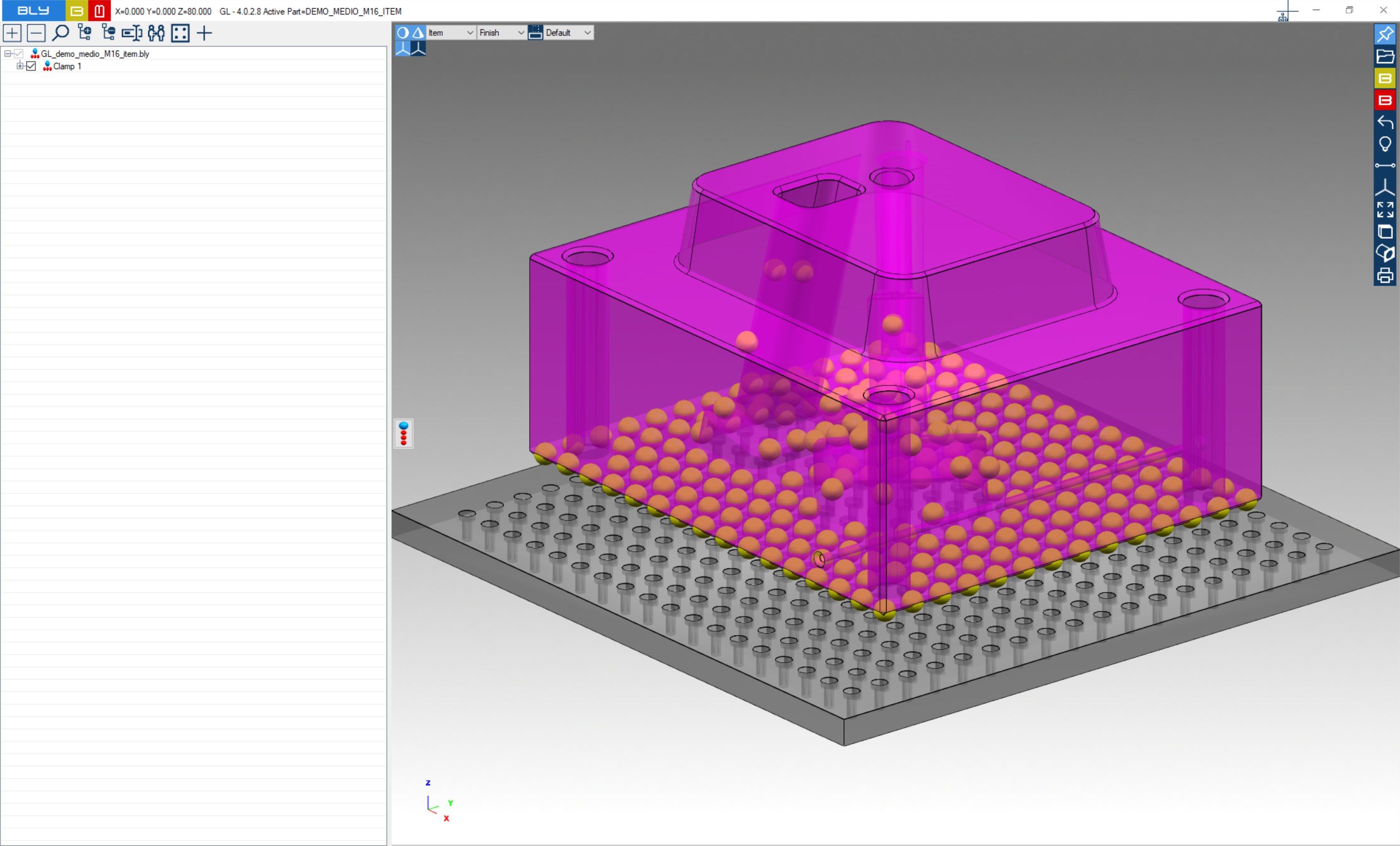

Once Guideline is activated and the first clamping environment defined, the graphical window will be as following:


See video tutorial: Activate Guideline 4.0
