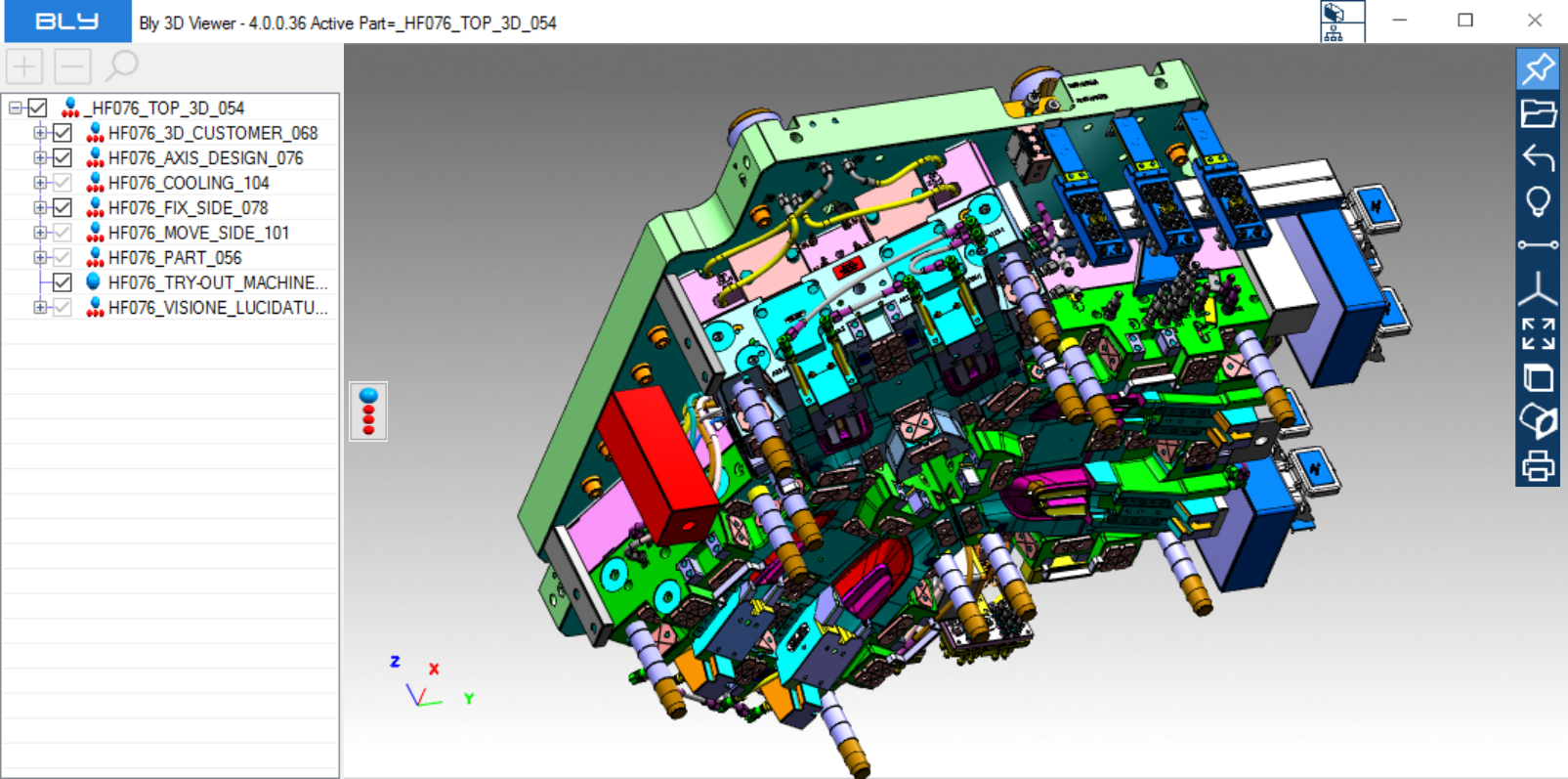

Assembly Navigator
To expand the Assembly Navigator press the button
It is possible to hide or display parts by unchecking and checking the boxes near the part name

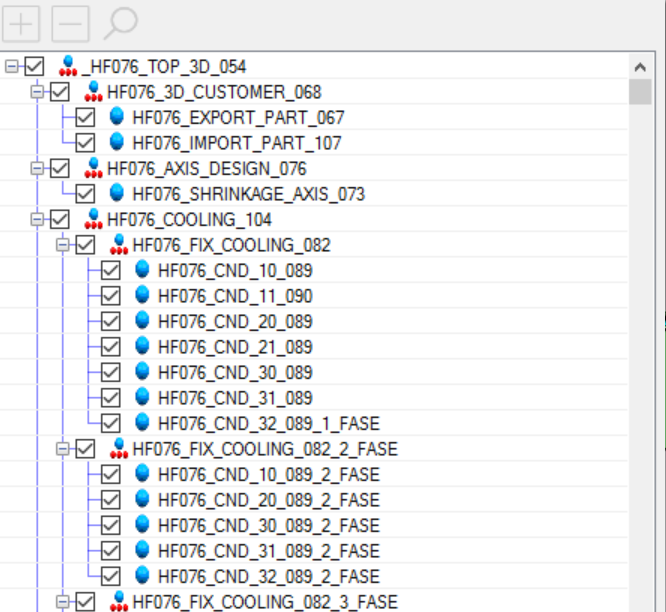

Pressing the symbol, the tree expands the structure view, showing the children. As opposite, the symbol compacts the structure view, hiding the levels below
Assembly Navigator Toolbar
Assembly toolbar includes the following commands:
Expand all
Expands all nodes to all subsequent levels, showing the full assembly structure
Collapse all

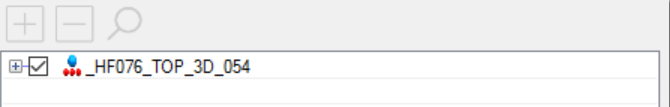

Collapse all nodes, showing the top level only
Find Component
Collapse all nodes, showing the top level only
