As a starting point for the machine set-up definition, placement seats can be defined in another clamp environment or, alternatively, imported 3d models can have placement seats already created in a 3D CAD system: in this last case, Guideline 4.0 recognizes them automatically, based on their geometry.

There are two ways to display the available FCS seats:

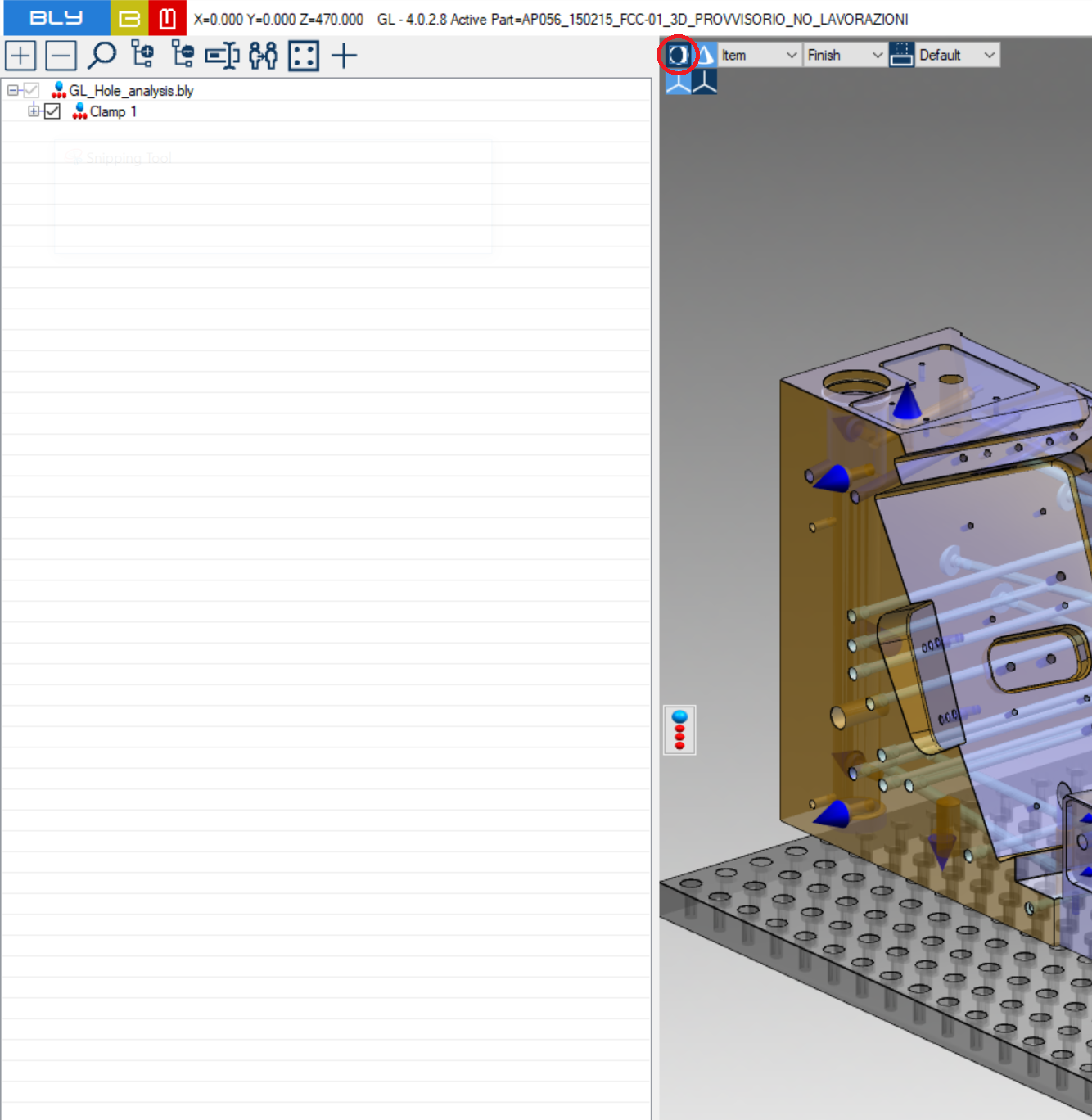

  1. Turn off the projected spheres using "Activate/Deactivate Projected Spheres" icon


  1. Select the workpiece

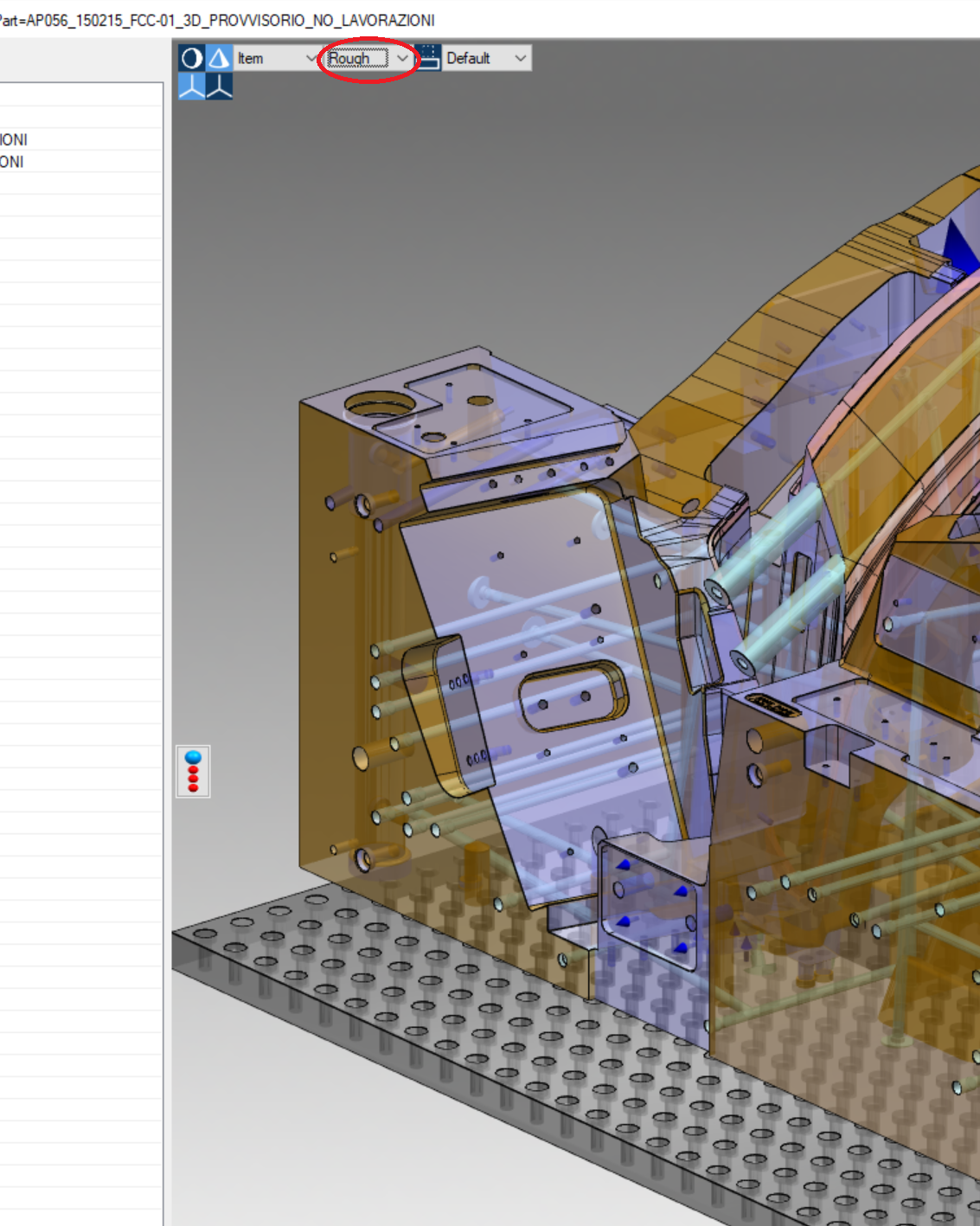

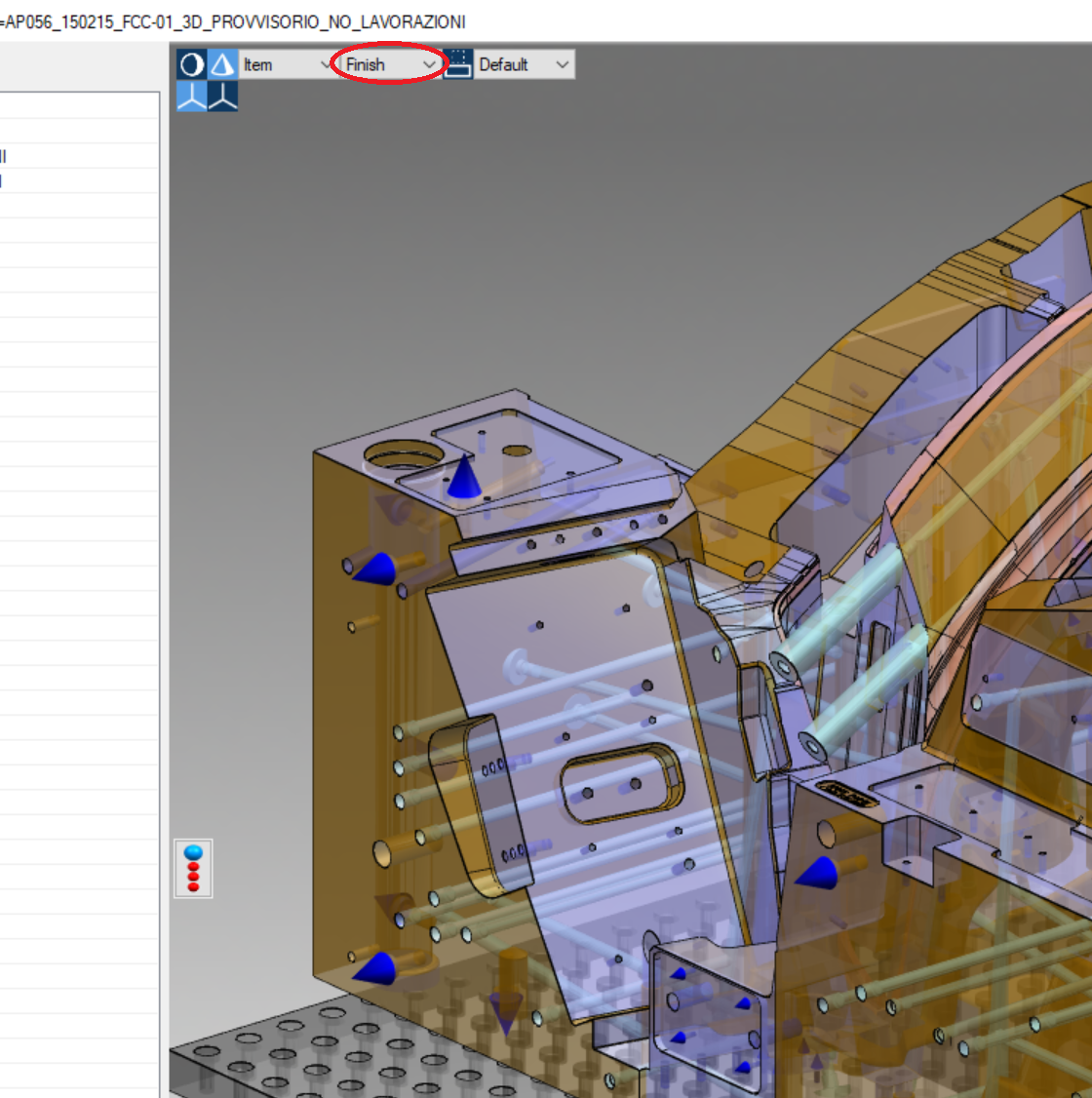

In both cases, seats are recognized based on dimension class selected: when "Finish" is set, only finish-class seats are available for selection and display the cones. Same for "Rough" size.
