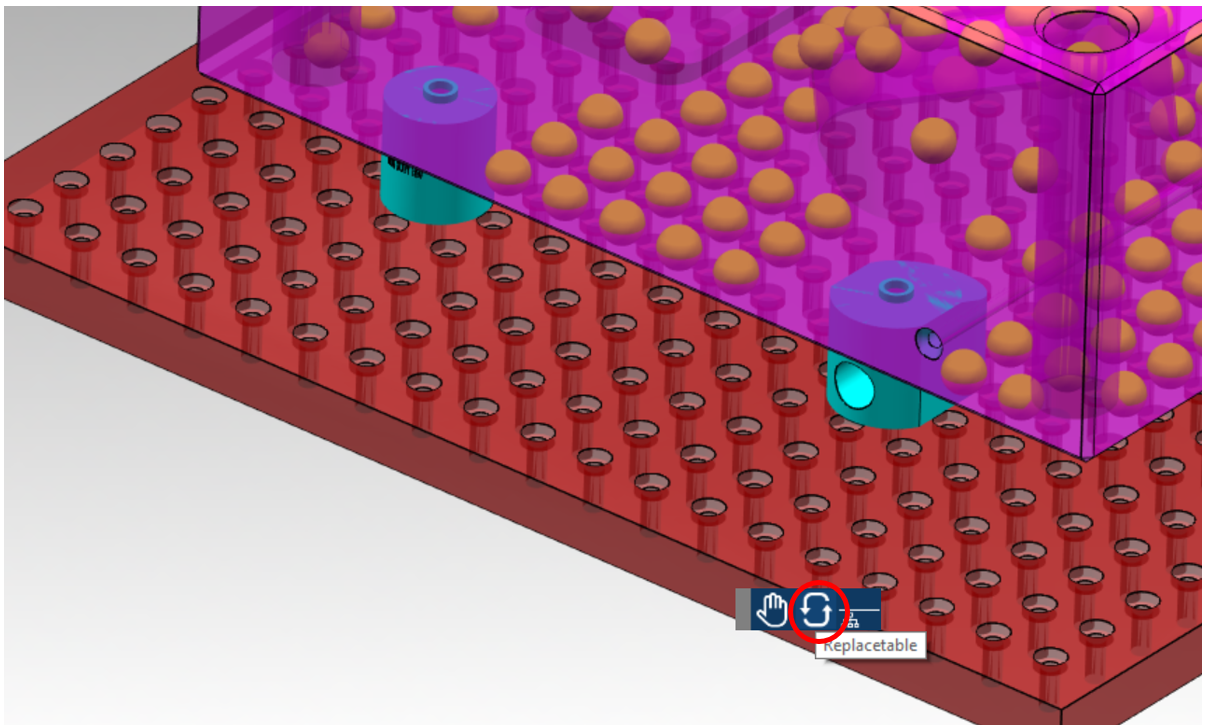

It is possible to replace the base gauge for an existing clamping environment.

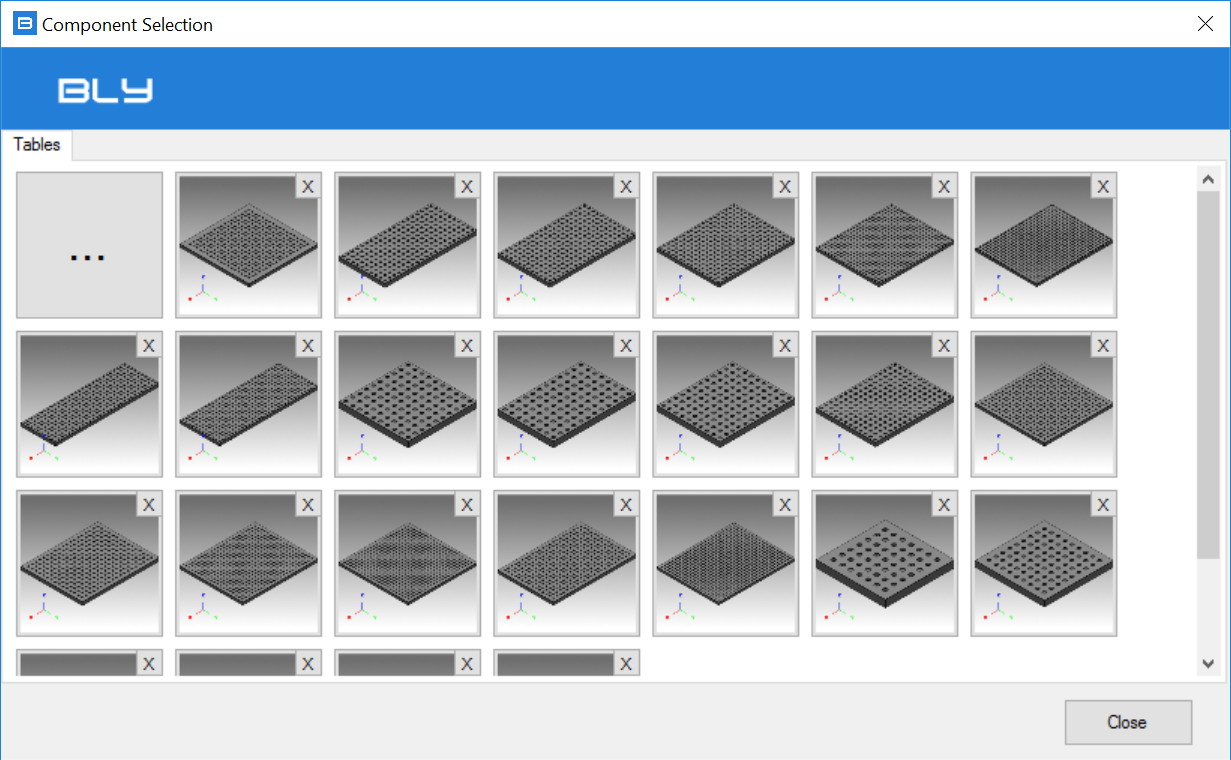

On the clamping tree, right click on the environment’s node and choose «ReplaceTable»: the Component Selection window will display and it will be possible to select the new table.

Stacks will be maintained while replacing table with one of the same kind (TR with TR, TF with TF) and if it is geometrically possible to create them (so, the table is big enough).

While replacing the base gauge it's possibile to modify the library with additional tables and/or remove the ones present already by clicking  (see chap. customise library).
