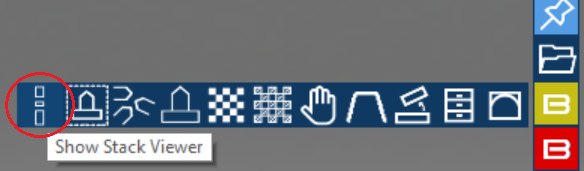

Stacks' configuration can be shown in details using this functionalities accessible from the main toolbr as show below

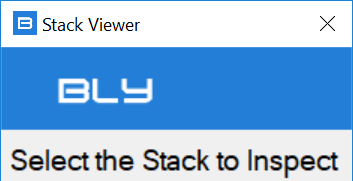

Selecting this command, Guideline displays the window below, waiting for a stack to be selected

See an example in this VIDEO

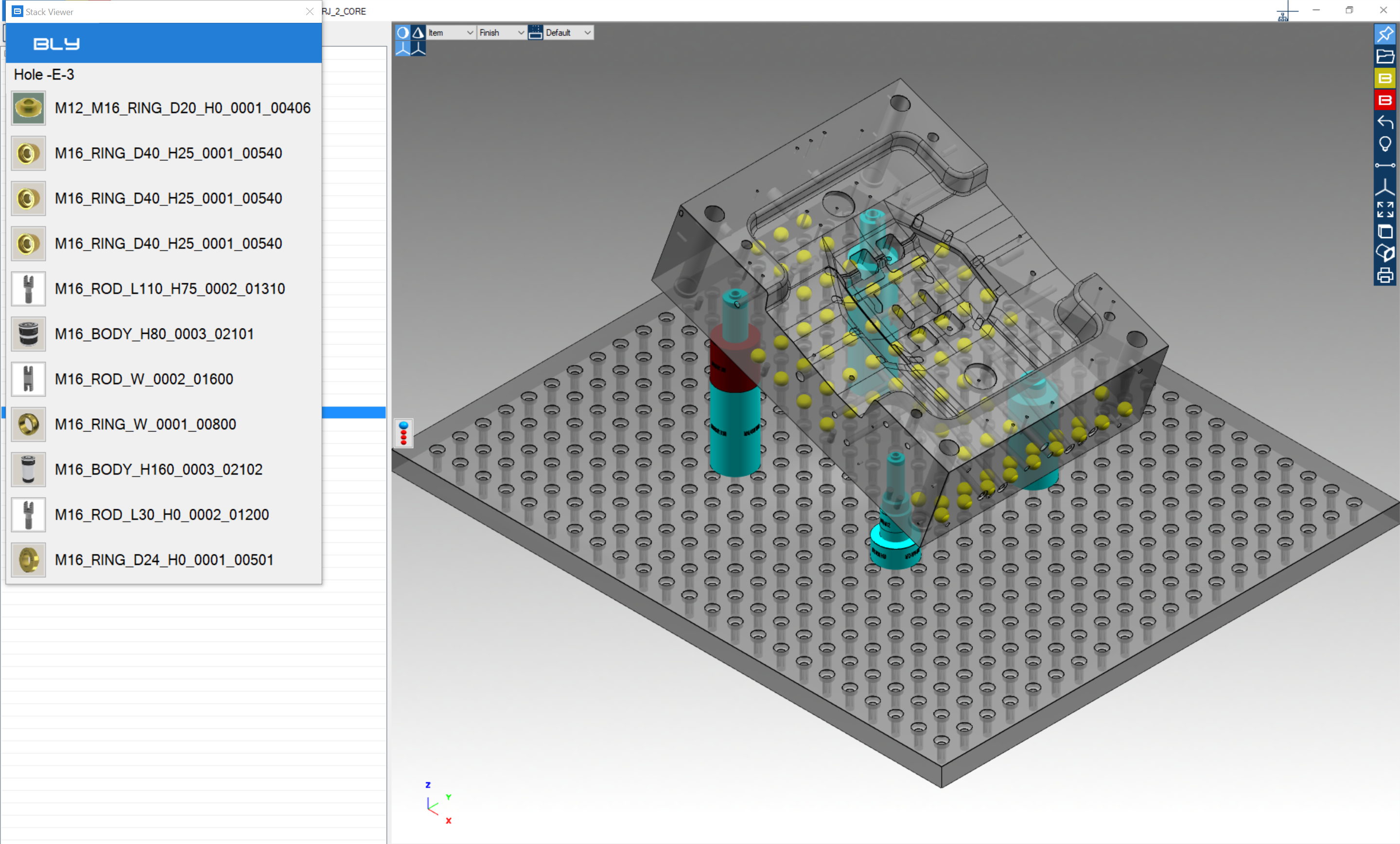

When a stack is selected, its exploded view is displaied the Stack Viewer's window, showing the FCS components utilised in that specific stack.


The window shows at the top the stack's position on the base gauge. The hole is identified with a "battleship" mechanism, as follows:

Base Gauges type «TR» (with a hole in the center)

  • Central hole is marked «A,0»;
  • Lines are named with numbers, + for the upper side, - for the lower side, growing outward;
  • Columns are named with letters, + for the right side, - for the left side, growing outward.

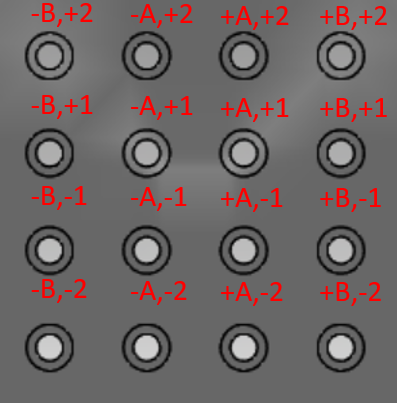

Base Gauges type «TF» (with no hole in the center)

  • Lines are named  with numbers, + for the upper side, - for the lower side, growing from the most internal outward;
  • Columns are named with letters, + for the right side, - for the left side, growing from the most internal outward.
