Guideline 4.0 is built on Bly 3D Viewer technology and shares its geometrical kernel and user interface: on this backbone, we added clamping functionalities.

This means that, when the software is launched, it starts in "viewing" mode, allowing the user to benefit from Bly functionalities.


Starting a Guideline 4.0 session

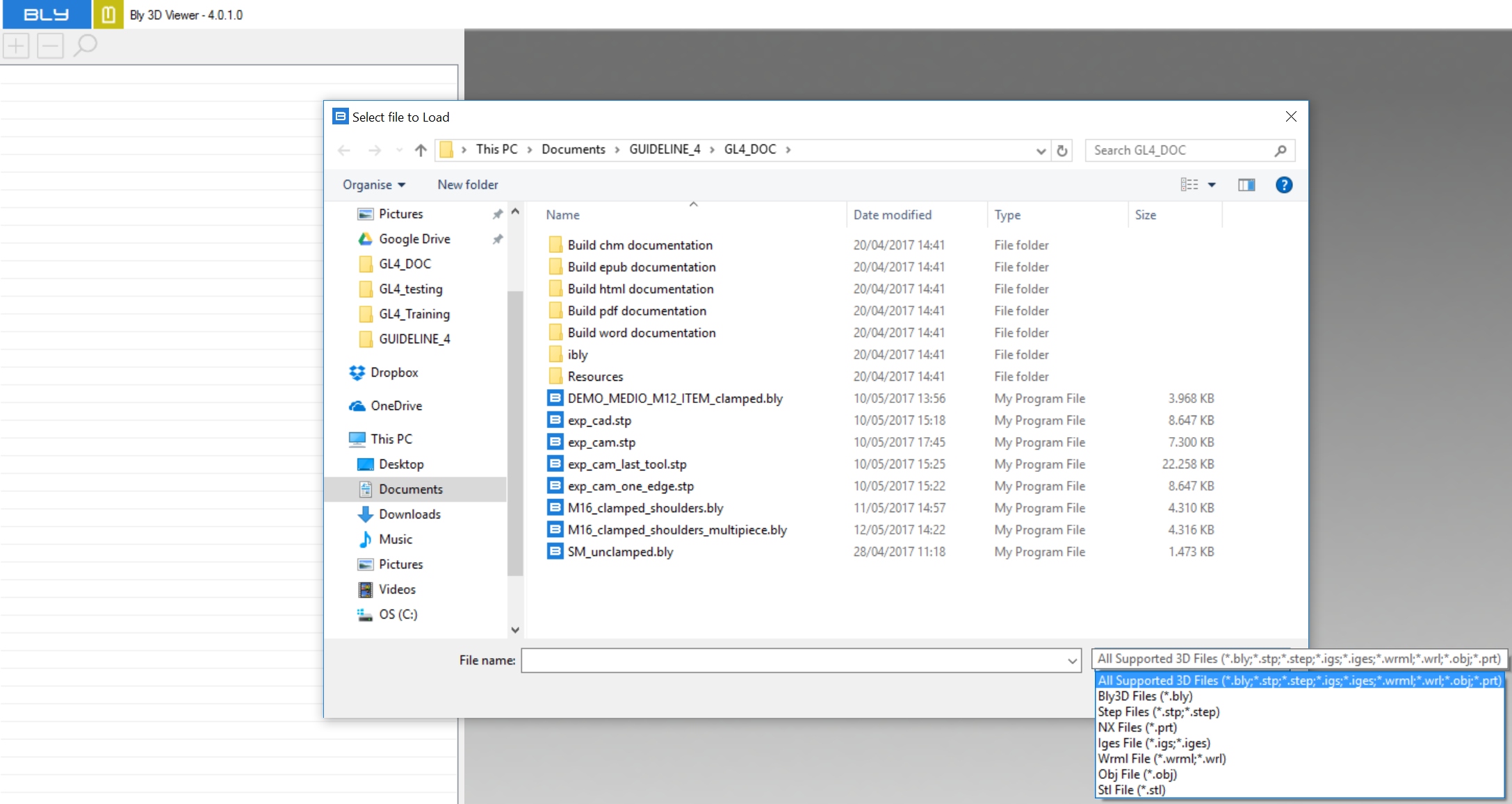

Opening the 3D model

Supported file format


3D models can also be opened by drag&drop them on Guideline 4.0 desktop icon or in the graphic area

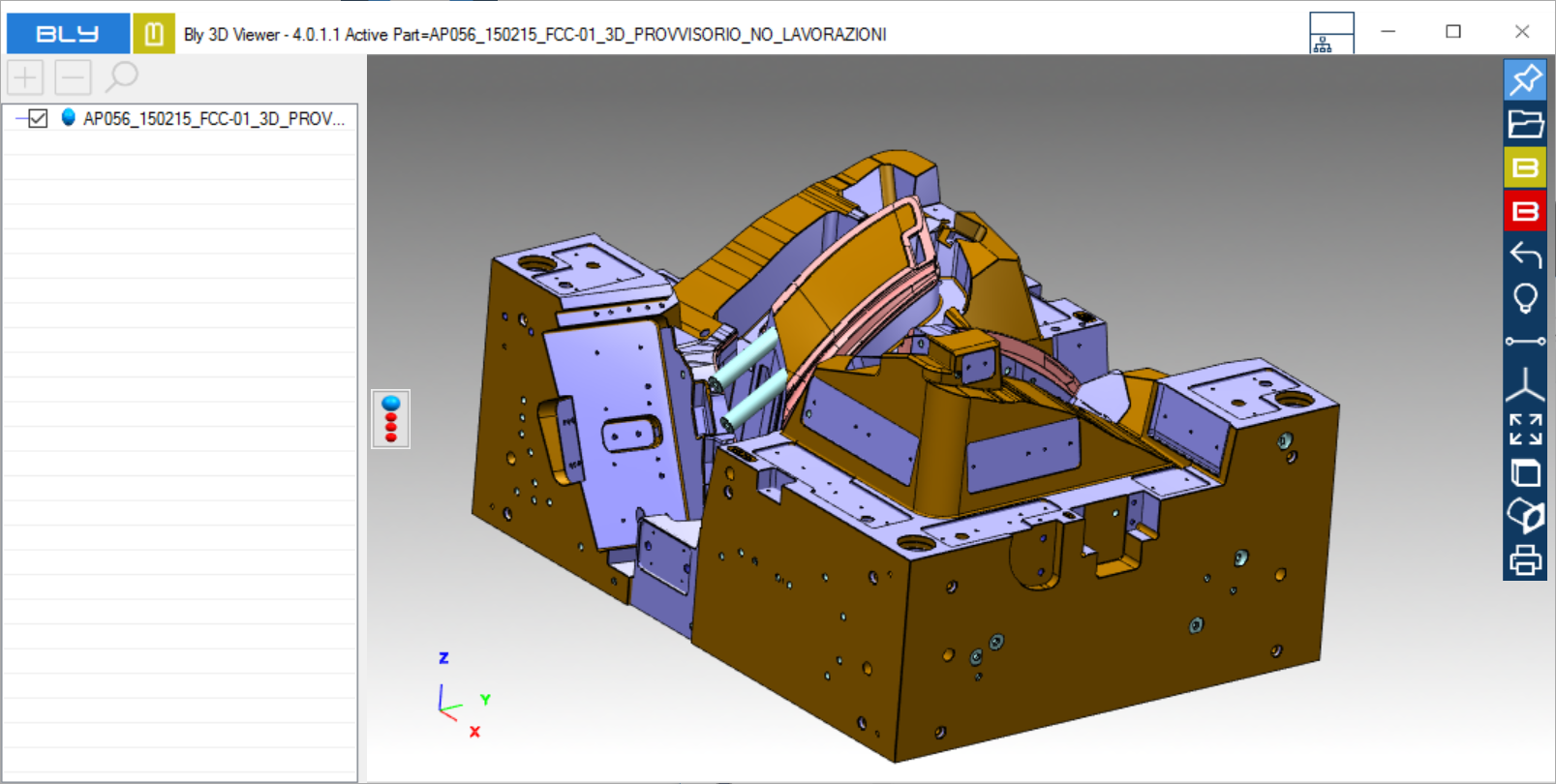

Here below is shown a picture of Guideline 4.0 just launched with an open model


In the upper-left corner of the window, a golden icon and a label is displaied to identify which mode (either Bly or Guideline 4.0) is activated:

 Bly mode

 Guideline mode


In the following pages you will find the manual related to the viewing functionalities (Bly). Clamping functionalities are documented starting from GUIDELINE 4.0 chapter.
