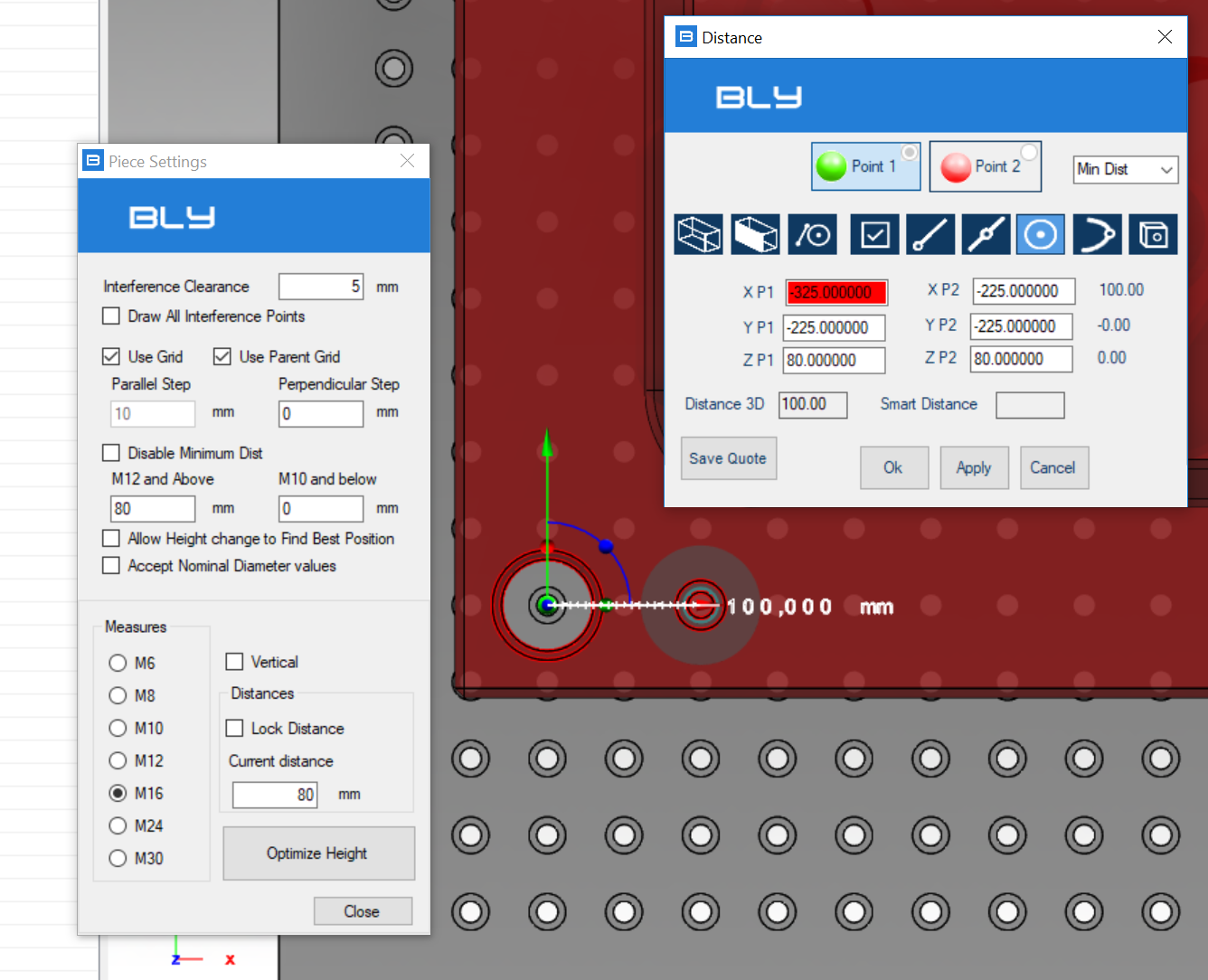

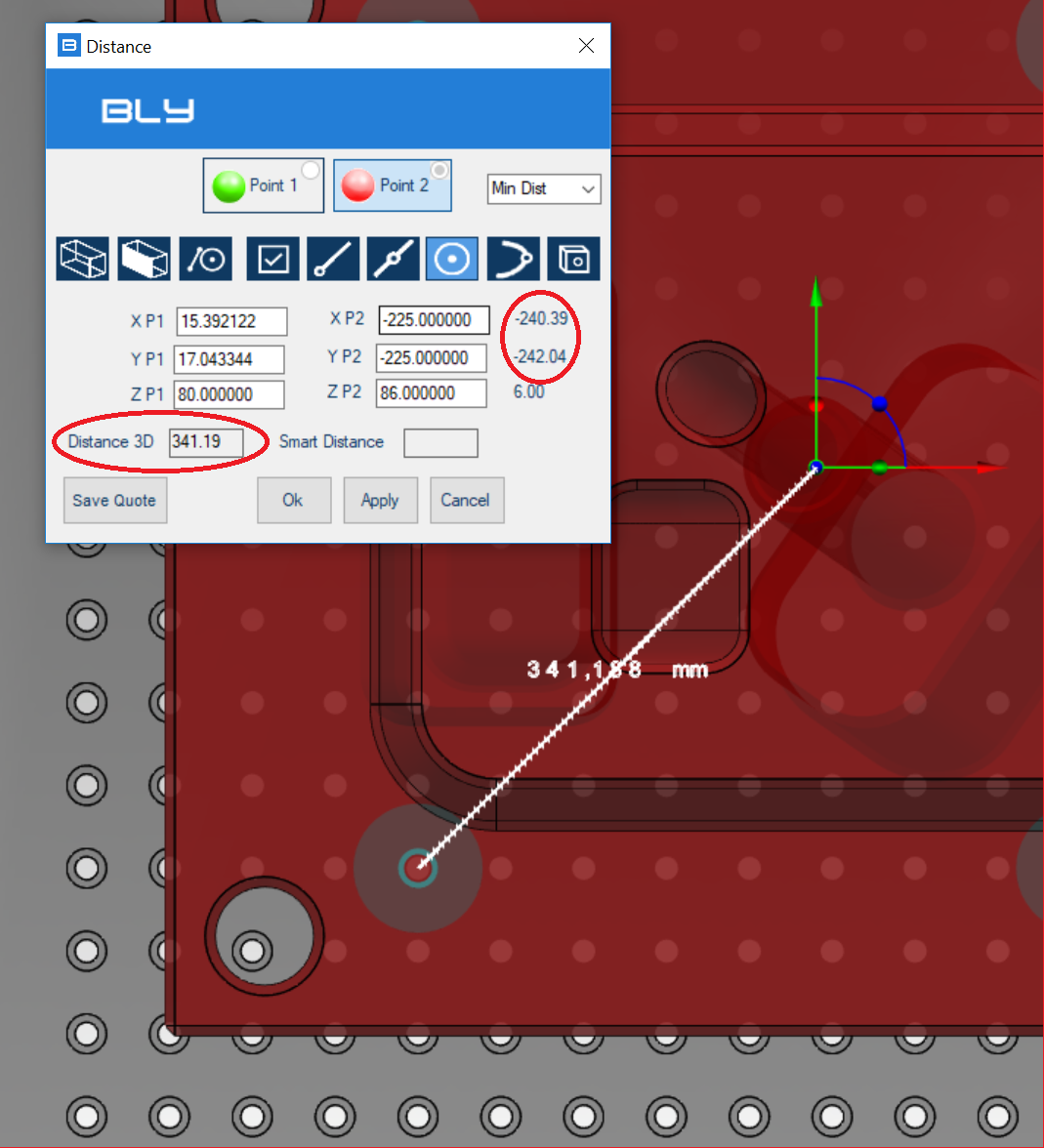

One of the important details to be consider when working with FCS clamping system is the need of checking the position of the seats regarding the origin in the clamps. In other words, in production, operators must control that FCS seats are placed in the position designed and they do it measuring their distance from the origin (neutral point). If not properly designed, this distance can be a funny number with several decimal digits, making it difficult to measure it (and to create seats too).

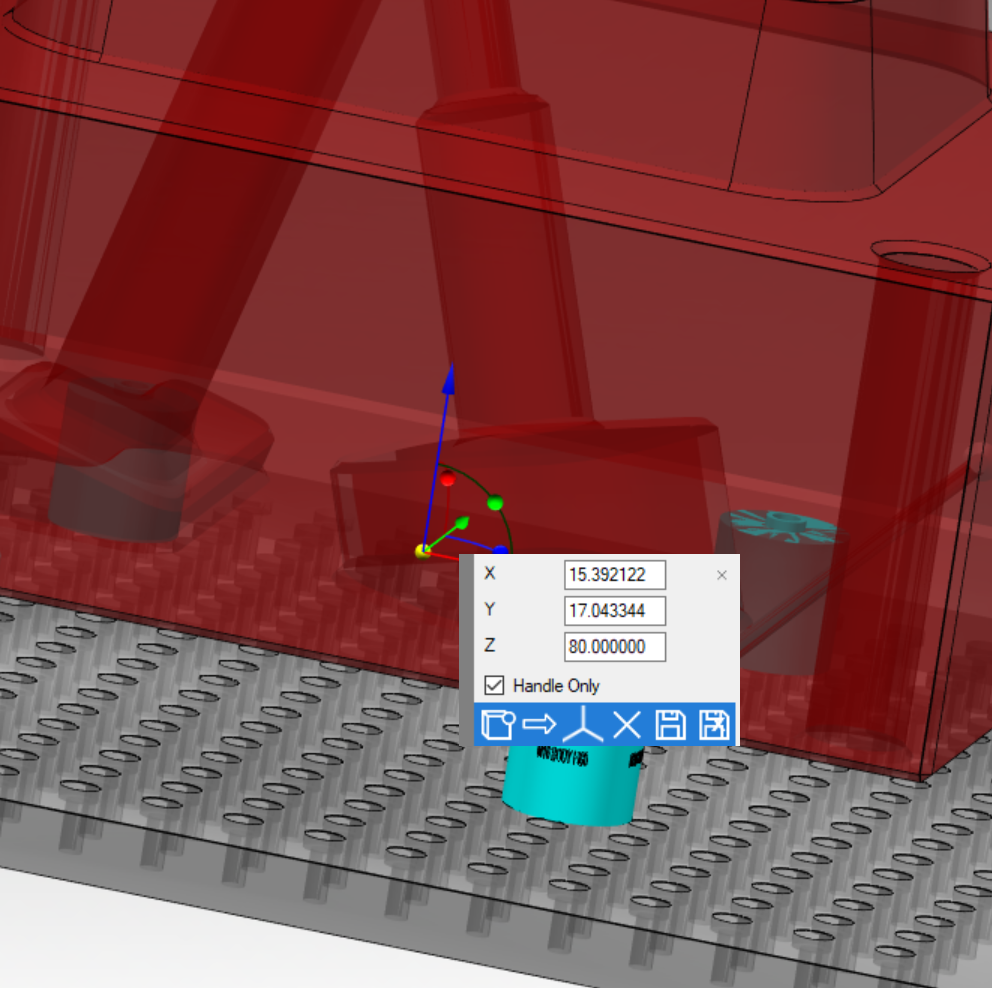

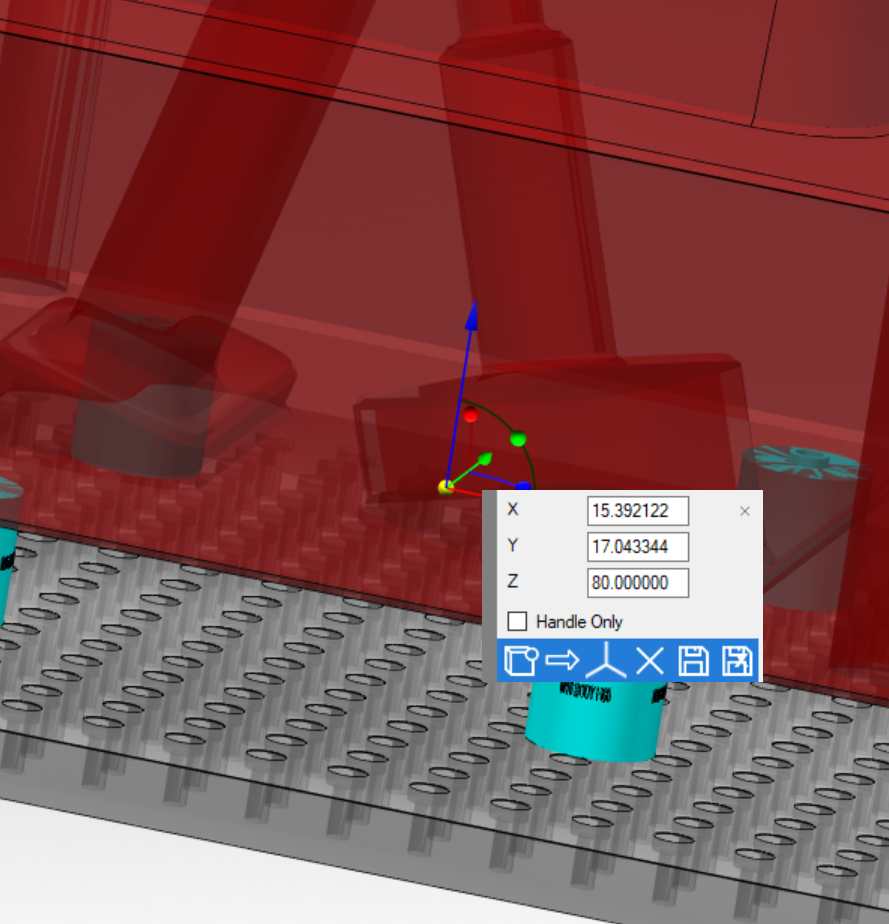

In Guideline 4.0, is possible to define an additional origin, specifically for clamping (which will be normally coincident with positioning control point): in order to do it, click on the manipulator's origin and the positioning window will display. Select then "Handle Only" option, that will apply the changes to the manipulator only, without moving the job,

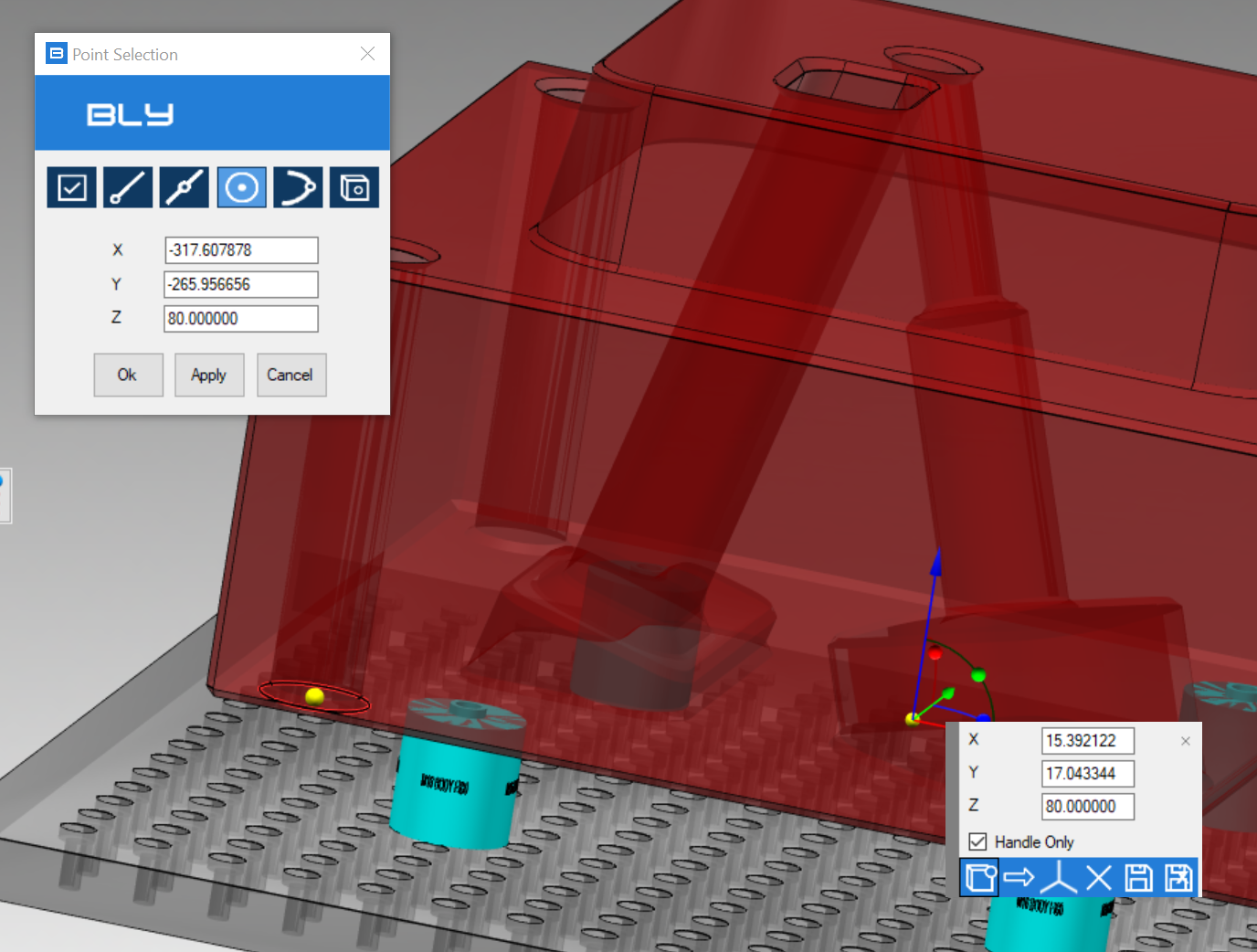

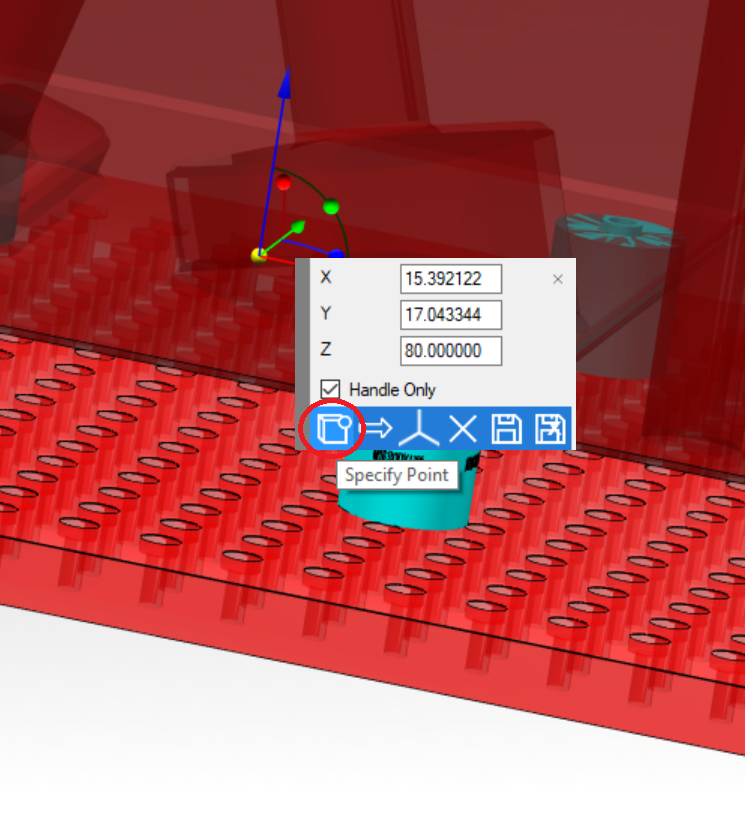

It is now possible specify a new position for clamping origin, either entring the absolute coordinates or specifying a destination point

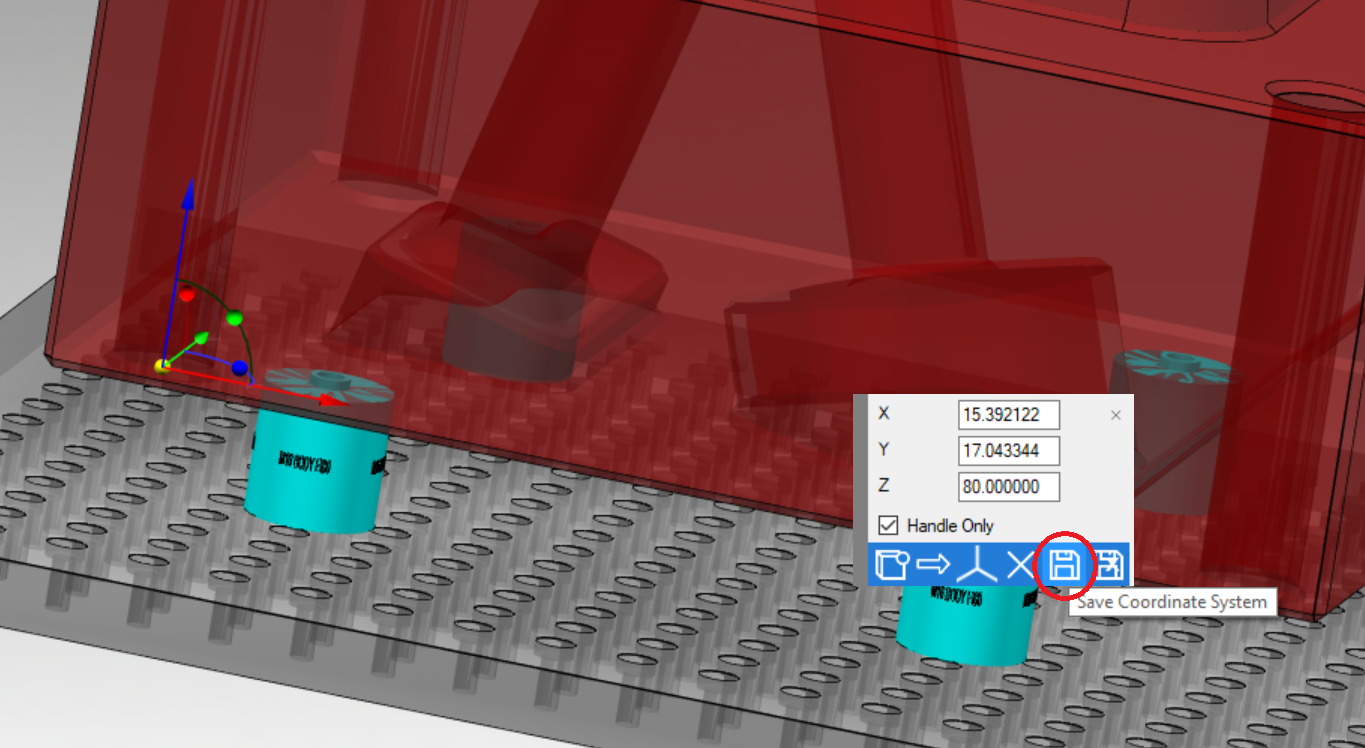

After the definition, the new origin must be saved in order to be effective:
