Basic commands (Show all)
Show all
Shows all the objects loaded (do not open closed components), including hidden geometry
Invert Show
It inverts the display situation, hiding visible objects and showing hidden ones
Hide Curves
Hides curves eventually present in the model

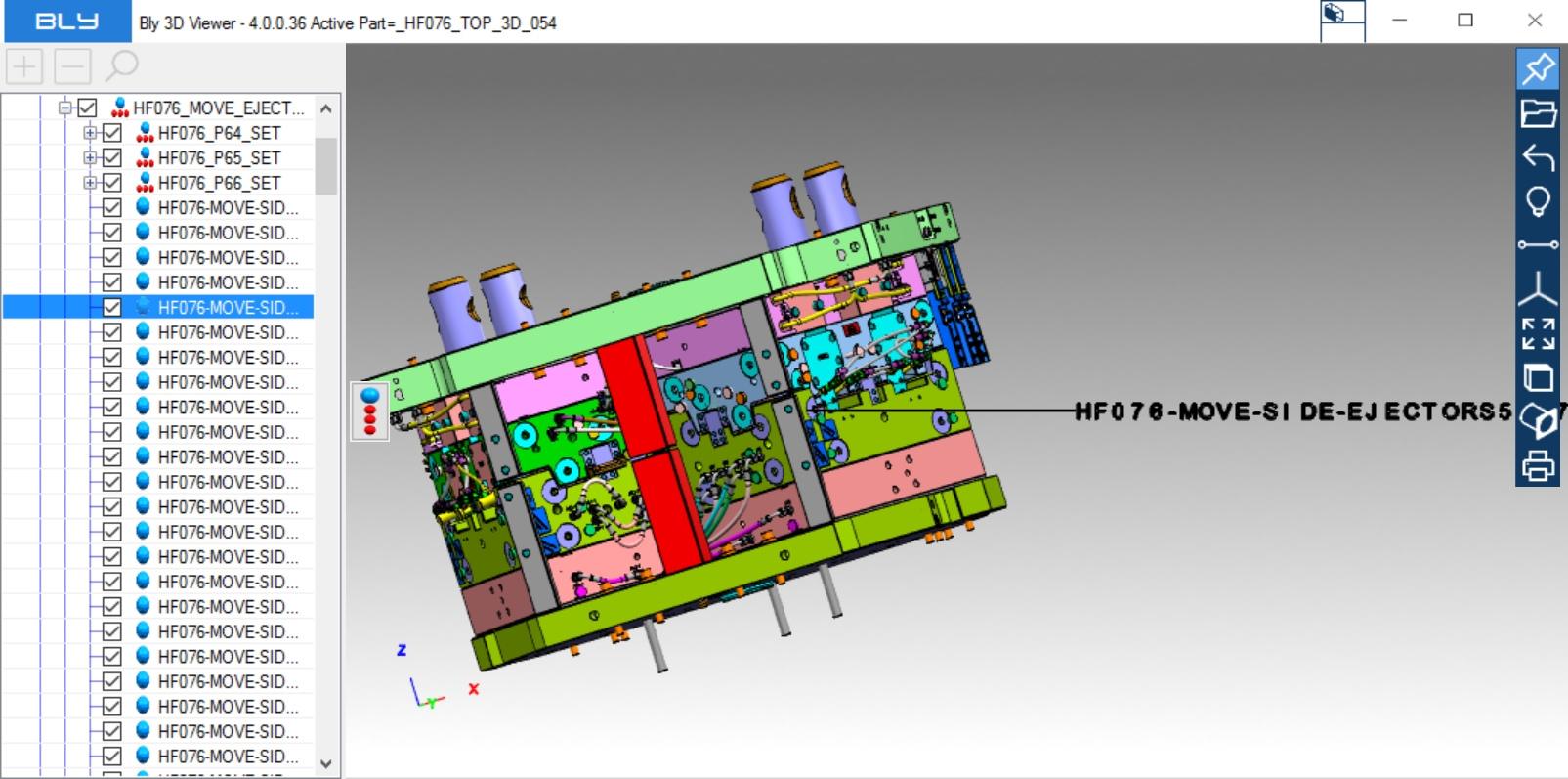

Show Component Name on Screen
Choosing this option you will be able to show the name of a selected component in the graphic area

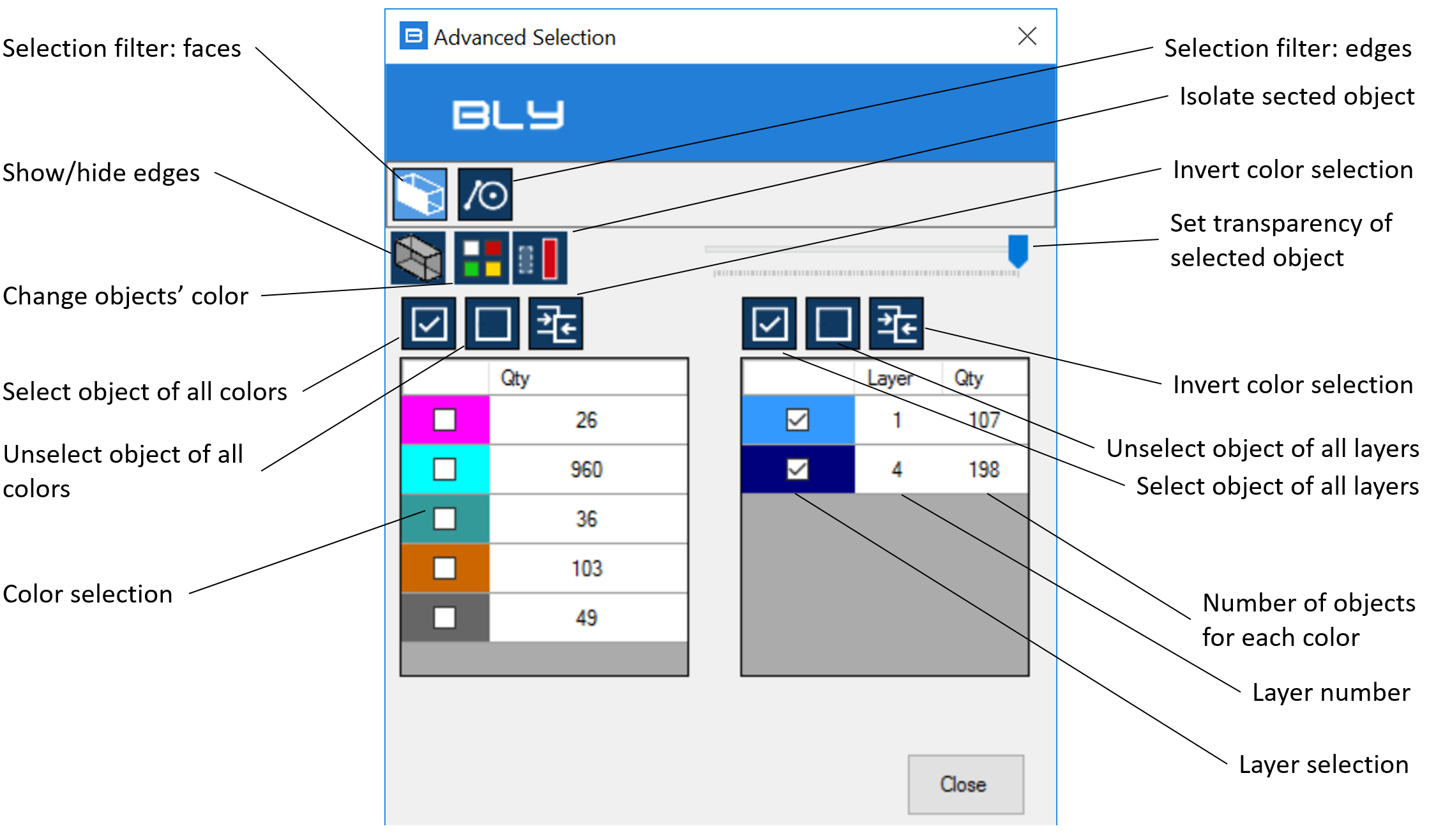

Advanced Selection
This command opens a dedicated window to help you filter the object selection based on two criteria: colors and layers. Both properties are imported from the original 3D file (NX, STEP) and available in Bly to be used. Once the object is selected, further actions may be accomplished (blank, isolate, change color etc.)

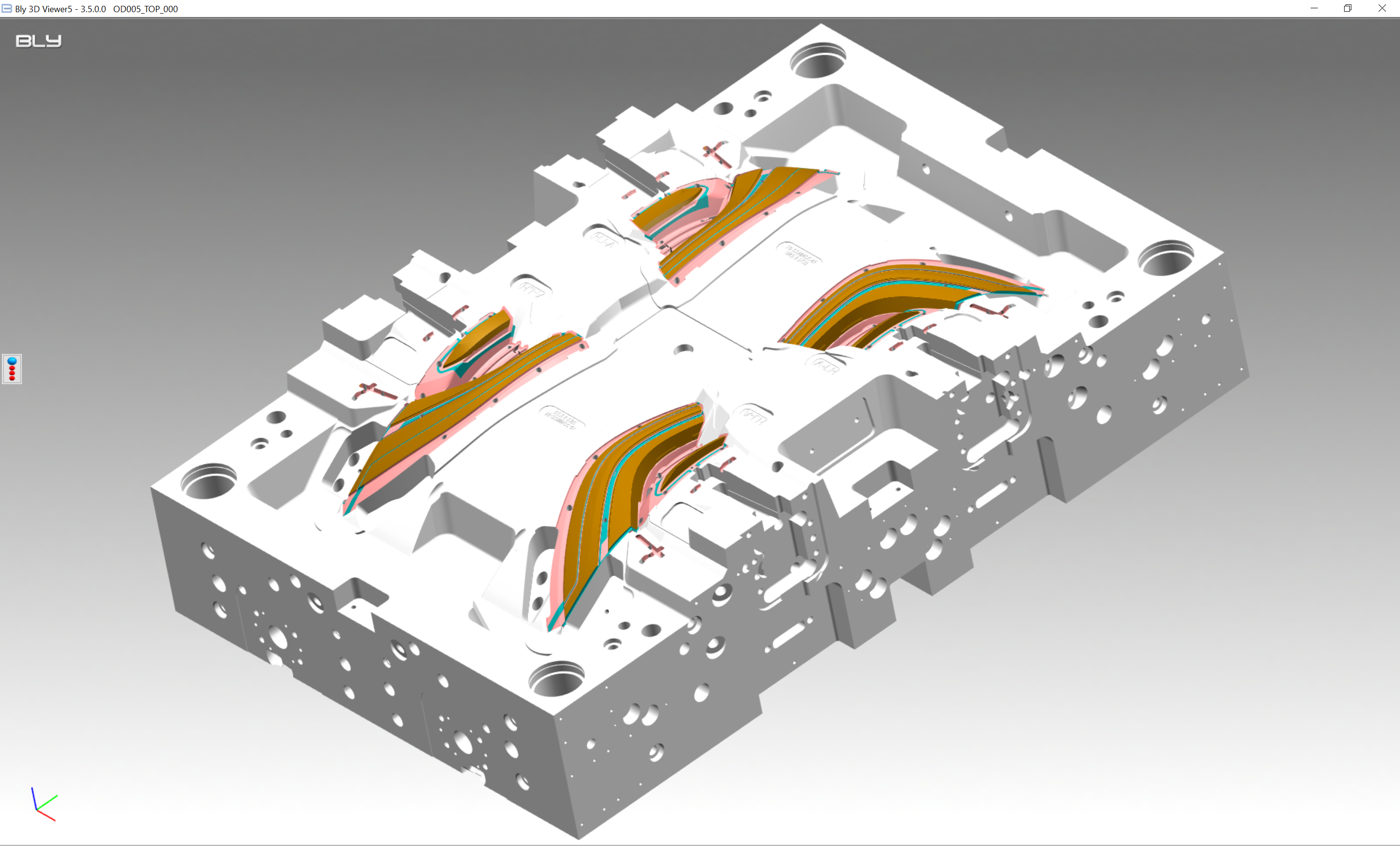

Show/hide Edges
As you can see this option enables you to hide or show the edges that are in figure. It has a significant impact on the visualisation effect and performance.

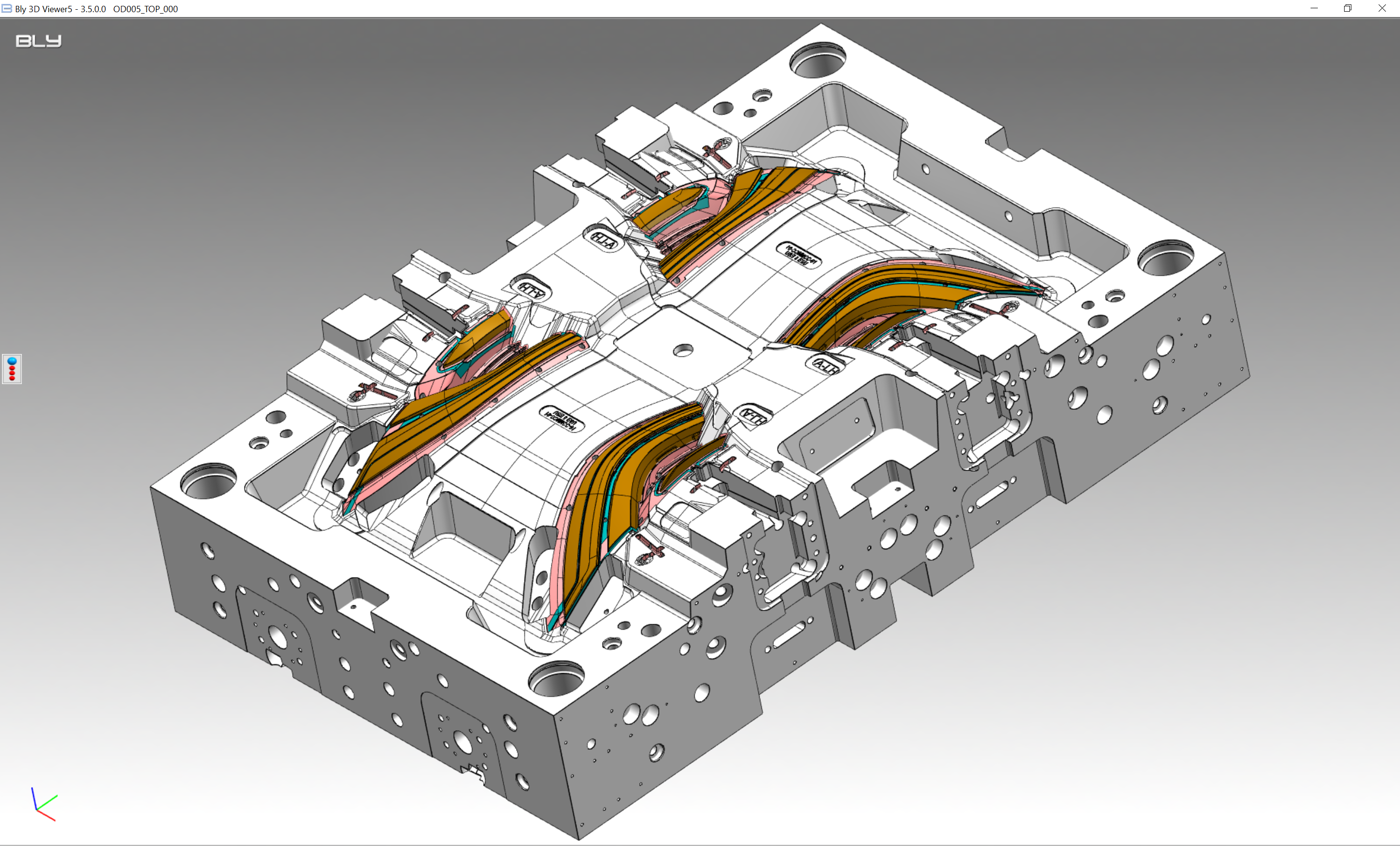

Show edges: |
||
|
